2 · Deformation Gradient Intuition#
Tutorial 1 built \(F = D_s D_m^{-1}\); here we feel it. We apply the four basic deformations (translation, rotation, scale, shear) to a triangle and read off \(F\) each time, then read one \(F\) per triangle on a bent mesh. Watch for the headline fact: \(F\) ignores translation, because a gradient kills additive constants.
Imports, and every tunable parameter of this notebook.
%matplotlib inline
import os
import numpy as np
import matplotlib.pyplot as plt
import igl
import simkit
import utils
NOTEBOOK = "002_deformation_gradient_intuition" # this file's name
RESULTS_DIR = utils.notebook_results_path(NOTEBOOK) # results/002_deformation_gradient_intuition/
MEDIA_DIR = "media" # tracked copies for the website
# rest triangle
SIDE = 1.0 # side length of the equilateral rest triangle
# static deformations
TRANSLATION_OFFSETS = [[0.0, 0.0], [2.0, -1.5], [-3.0, 4.0]] # offsets for the translation print-out
PANEL_OFFSET = [1.8, 0.6] # translation shown in the side-by-side panels
PANEL_ANGLE = np.pi / 4 # rotation angle in the panels (rad)
PANEL_SCALE = (1.6, 0.7) # (sx, sy) scale factors in the panels
PANEL_SHEAR = 0.8 # shear factor k in the panels
# animations
N_FRAMES = 48 # frames per animation
FPS = 20 # playback rate
FIG8_AMP = (1.6, 1.0) # x / y amplitude of the figure-8 translation path
# bent strip
STRIP_NX, STRIP_NY = 31, 9 # strip grid resolution (vertices)
STRIP_W, STRIP_H = 4.0, 0.8 # strip width and height
BEND_RADIUS = 1.5 # radius of the circle the strip's center line wraps onto
The rest triangle#

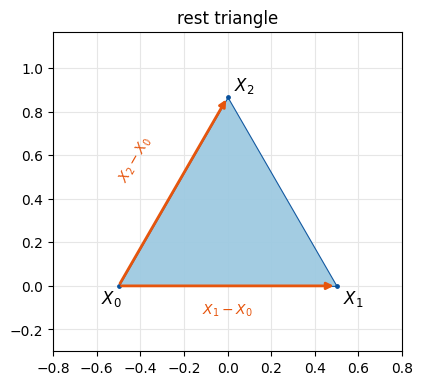

The rest triangle is equilateral with side SIDE. Its two edge vectors from vertex 0 (arrows) are the
columns of \(D_m\). Every map below moves these three vertices, and simkit.deformation_gradient reads
\(F\) back.
X = SIDE * np.array([[-0.5, 0.0], [0.5, 0.0], [0.0, np.sqrt(3) / 2]])
T = np.array([[0, 1, 2]])
fig, ax = plt.subplots(figsize=(4.5, 4.2))
utils.plot_mesh(ax, X, T, show_vertices=True, title="rest triangle", lims=utils.auto_limits([X], pad=0.3 * SIDE))
for i, offset in enumerate([(-0.08, -0.08), (0.03, -0.08), (0.03, 0.03)]):
ax.text(*(X[i] + SIDE * np.array(offset)), f"$X_{i}$", fontsize=12)
for j in (1, 2):
ax.annotate("", xy=X[j], xytext=X[0], arrowprops=dict(arrowstyle="-|>", color="#e6550d", lw=2))
ax.text(*((X[0] + X[1]) / 2 + SIDE * np.array([0.0, -0.13])), "$X_1 - X_0$", color="#e6550d", ha="center")
ax.text(*((X[0] + X[2]) / 2 + SIDE * np.array([-0.17, 0.05])), "$X_2 - X_0$", color="#e6550d", ha="center",
rotation=60)
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "rest_triangle.png"),
copy_to=os.path.join(MEDIA_DIR, "002_rest_triangle.png"))
plt.show()
Four deformation maps#
Rotation, scale and shear are linear maps \(x = A X\) of the rest vertices, so we expect \(F = A\). Translation adds a constant offset, \(x = X + t\), so we expect \(F = I\).
def translate(X, t):
offset = np.asarray(t, dtype=float)
U = X + offset
return U
def rotate(X, theta):
R = np.array([[np.cos(theta), -np.sin(theta)],
[np.sin(theta), np.cos(theta)]])
return X @ R.T
def scale(X, sx, sy):
S = np.array([[sx, 0.0],
[0.0, sy]])
return X @ S.T
def shear(X, k):
K = np.array([[1.0, k],
[0.0, 1.0]])
return X @ K.T
Translation leaves \(F = I\)#
Slide the triangle by each offset in TRANSLATION_OFFSETS. The printed \(F\) is the identity with
\(\det F = 1\) every time (the -0. is a round-off-sized negative zero).
for offset in TRANSLATION_OFFSETS:
F = simkit.deformation_gradient(X, T, translate(X, offset))[0]
print(f"translate by {offset}: F =\n{np.round(F, 3)} det F = {np.linalg.det(F):.3f}\n")
translate by [0.0, 0.0]: F =
[[1. 0.]
[0. 1.]] det F = 1.000
translate by [2.0, -1.5]: F =
[[1. 0.]
[0. 1.]] det F = 1.000
translate by [-3.0, 4.0]: F =
[[ 1. -0.]
[ 0. 1.]] det F = 1.000
The four deformations side by side#

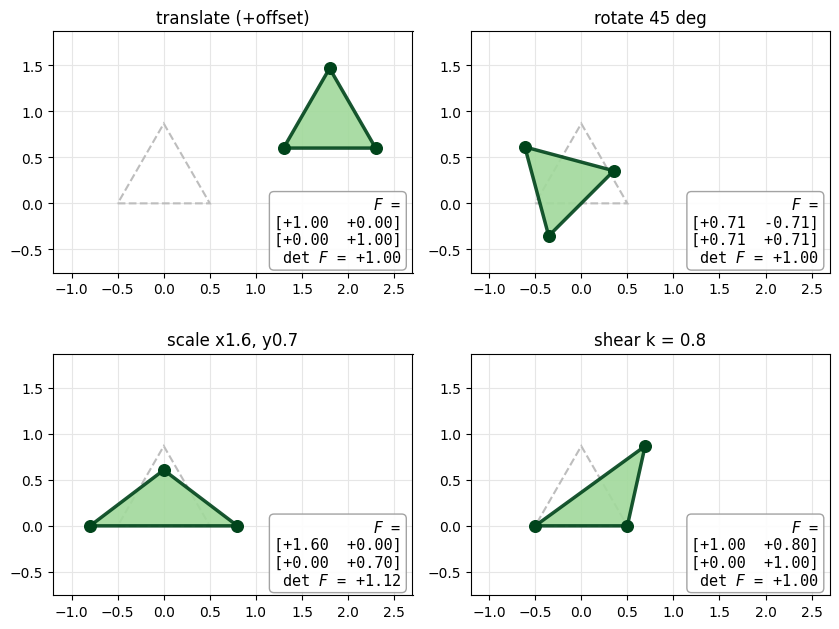

The dashed outline is the rest triangle. Rotation gives a rotation matrix with \(\det F = 1\); scale gives a diagonal \(F\) whose determinant \(1.6 \cdot 0.7 = 1.12\) is the area ratio; shear gives the single off-diagonal entry \(k\); translation, even by a large offset, gives \(F = I\).
cases = [
("translate (+offset)", translate(X, PANEL_OFFSET)),
(f"rotate {np.degrees(PANEL_ANGLE):.0f} deg", rotate(X, PANEL_ANGLE)),
(f"scale x{PANEL_SCALE[0]}, y{PANEL_SCALE[1]}", scale(X, *PANEL_SCALE)),
(f"shear k = {PANEL_SHEAR}", shear(X, PANEL_SHEAR)),
]
cases = [(name, U, simkit.deformation_gradient(X, T, U)[0]) for name, U in cases]
fig, _ = utils.deformation_panels(cases, rest=X, ncols=2, figsize=(8.5, 6.6))
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "four_deformations.png"),
copy_to=os.path.join(MEDIA_DIR, "002_four_deformations.png"))
plt.show()
Animation: rotating the triangle, \(F\) traces \(R(\theta)\)#
Spin the triangle through a full turn in N_FRAMES steps. The read-out cycles through
\(F = \begin{bmatrix}\cos\theta & -\sin\theta\\ \sin\theta & \cos\theta\end{bmatrix}\) with \(\det F = 1\)
in every frame.
angles = np.linspace(0, 2 * np.pi, N_FRAMES, endpoint=False)
states_rot = [rotate(X, a) for a in angles]
Fs_rot = np.array([simkit.deformation_gradient(X, T, U)[0] for U in states_rot])
fig, anim = utils.animate_deformation(states_rot, Fs_rot, rest=X, fps=FPS,
title=r"Pure rotation: $F = R(\theta)$")
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "rotation.mp4"), fps=FPS,
copy_to=os.path.join(MEDIA_DIR, "002_rotation.mp4"))
plt.close(fig)
utils.embed_video(video)
Animation: translating the triangle, \(F = I\) always#
Slide the triangle along a figure-8 path (amplitudes FIG8_AMP). The dashed rest triangle stays put,
the triangle travels, and the read-out never leaves the identity.
ts = np.linspace(0, 2 * np.pi, N_FRAMES)
path = np.stack([FIG8_AMP[0] * np.sin(ts), FIG8_AMP[1] * np.sin(2 * ts)], axis=1)
states_trans = [translate(X, p) for p in path]
Fs_trans = np.array([simkit.deformation_gradient(X, T, U)[0] for U in states_trans])
(x_lo, x_hi), (y_lo, y_hi) = utils.auto_limits(states_trans + [X], pad=0.5 * SIDE)
lims = ((x_lo, x_hi), (y_lo, y_lo + (y_hi - y_lo) / 0.75)) # top quarter kept free for the F read-out
fig, anim = utils.animate_deformation(states_trans, Fs_trans, rest=X, lims=lims, fps=FPS,
title=r"Pure translation: $F = I$ (always)")
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "translation.mp4"), fps=FPS,
copy_to=os.path.join(MEDIA_DIR, "002_translation.mp4"))
plt.close(fig)
utils.embed_video(video)
Checking both animations#

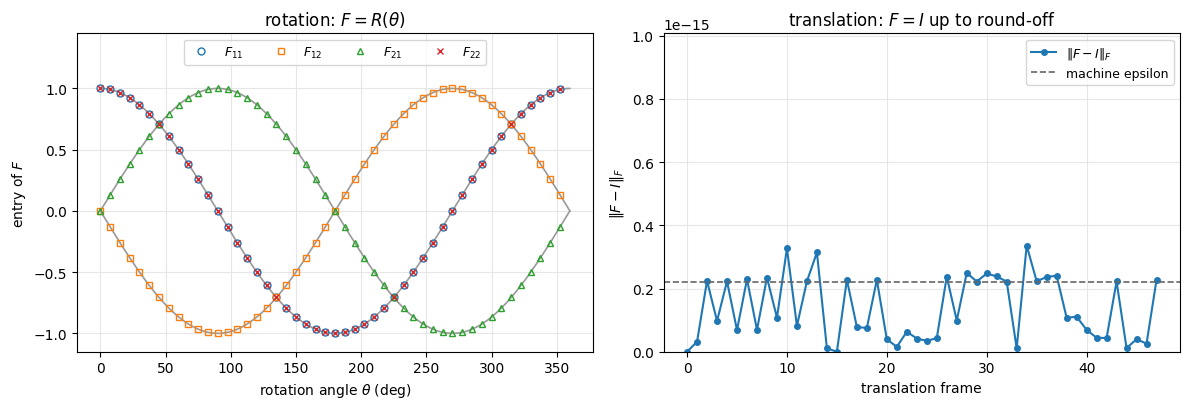

Left: the four entries of \(F\) from every rotation frame (markers) lie on \(\cos\theta\) and \(\pm\sin\theta\) (gray lines). Right: \(\|F - I\|_F\) over the translation frames stays at round-off level, near machine epsilon (dashed), so translation contributes nothing to \(F\).
fig, (ax_rot, ax_trans) = plt.subplots(1, 2, figsize=(12, 4.2))
theta_fine = np.linspace(0, 2 * np.pi, 200)
for exact in (np.cos(theta_fine), np.sin(theta_fine), -np.sin(theta_fine)):
ax_rot.plot(np.degrees(theta_fine), exact, "-", color="0.6", lw=1.2)
for (i, j), marker in zip([(0, 0), (0, 1), (1, 0), (1, 1)], ["o", "s", "^", "x"]):
ax_rot.plot(np.degrees(angles), Fs_rot[:, i, j], marker, ms=5, mfc="none", label=f"$F_{{{i + 1}{j + 1}}}$")
ax_rot.set(xlabel=r"rotation angle $\theta$ (deg)", ylabel="entry of $F$", title="rotation: $F = R(\\theta)$")
ax_rot.set_ylim(-1.15, 1.45) # headroom for the legend above the curves
ax_rot.grid(True, color="0.9")
ax_rot.legend(fontsize=9, ncol=4, loc="upper center")
err_trans = np.linalg.norm(Fs_trans - np.eye(2), axis=(1, 2))
ax_trans.plot(err_trans, "o-", ms=4, color="#1f77b4", label=r"$\|F - I\|_F$")
ax_trans.axhline(np.finfo(float).eps, color="0.4", ls="--", lw=1.2, label="machine epsilon")
ax_trans.set(xlabel="translation frame", ylabel=r"$\|F - I\|_F$",
ylim=(0, 3 * max(err_trans.max(), np.finfo(float).eps)),
title="translation: $F = I$ up to round-off")
ax_trans.grid(True, color="0.9")
ax_trans.legend(fontsize=9)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "F_checks.png"),
copy_to=os.path.join(MEDIA_DIR, "002_F_checks.png"))
plt.show()
One \(F\) per triangle: bending a strip#
On a mesh, \(F\) is constant inside each triangle but differs between triangles. Wrapping a strip onto a
circle of radius \(r\) = BEND_RADIUS is not affine: a rest point \((X, Y)\) gets
\(F = R(-X/r)\,\mathrm{diag}(1 + Y/r,\ 1)\), a rotation that varies along the strip times a stretch that varies
across it. simkit.polar_svd splits each triangle’s \(F = RS\) into rotation and stretch, and the print checks
both against the formula at the triangle centroids. They agree up to a small error, because a linear triangle
holds one constant \(F\) and cannot follow a gradient that varies inside it.
V_strip, T_strip = igl.triangulated_grid(STRIP_NX, STRIP_NY)
X_strip = (V_strip - 0.5) * np.array([STRIP_W, STRIP_H]) # centered STRIP_W x STRIP_H rectangle
def bend(X, radius):
phi = X[:, 0] / radius # arc angle along the center line
r = radius + X[:, 1] # distance from the circle's center
return np.stack([r * np.sin(phi), r * np.cos(phi) - radius], axis=1)
U_strip = bend(X_strip, BEND_RADIUS)
F_strip = simkit.deformation_gradient(X_strip, T_strip, U_strip) # (t, 2, 2): one F per triangle
R_strip, S_strip = simkit.polar_svd(F_strip) # F = R S
angle_deg = np.degrees(np.arctan2(R_strip[:, 1, 0], R_strip[:, 0, 0]))
det_F = np.linalg.det(F_strip)
centroids = simkit.average_onto_simplex(X_strip, T_strip) # mean of each triangle's rest vertices
angle_exact = np.degrees(-centroids[:, 0] / BEND_RADIUS)
det_exact = 1 + centroids[:, 1] / BEND_RADIUS
print(f"rotation angle: {angle_deg.min():+.1f} to {angle_deg.max():+.1f} deg, "
f"max |error| vs exact = {np.abs(angle_deg - angle_exact).max():.2f} deg")
print(f"det F: {det_F.min():.3f} to {det_F.max():.3f}, "
f"max |error| vs exact = {np.abs(det_F - det_exact).max():.4f}")
rotation angle: -75.3 to +75.3 deg, max |error| vs exact = 0.62 deg
det F: 0.732 to 1.265, max |error| vs exact = 0.0238

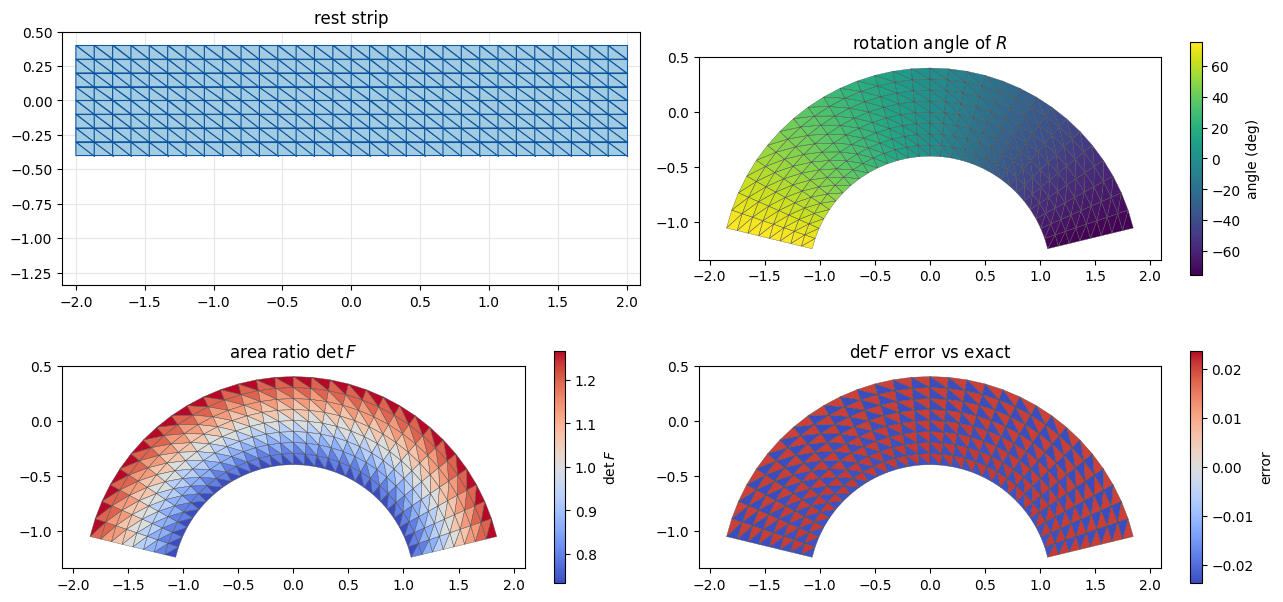

Top left: the rest strip mesh. Top right: each triangle’s rotation angle, turning steadily from about +75° at the left end to −75° at the right. Bottom left: \(\det F\), above 1 (red, stretched) on the outer side and below 1 (blue, compressed) on the inner side. Bottom right: \(\det F\) minus the exact centroid value, an alternating ±0.02 between neighboring triangles; this per-triangle error is most of the saw-tooth in the \(\det F\) panel. Each triangle is also translated a lot, yet no field shows it.
fig, axes = plt.subplots(2, 2, figsize=(13, 6.4))
axes = axes.ravel()
lims = utils.auto_limits([X_strip, U_strip], pad=0.1) # same view box in all panels
utils.plot_mesh(axes[0], X_strip, T_strip, title="rest strip", lims=lims)
utils.plot_scalar_field(axes[1], U_strip, T_strip, angle_deg, cmap="viridis", lims=lims,
title="rotation angle of $R$", label="angle (deg)")
det_range = np.abs(det_F - 1).max()
utils.plot_scalar_field(axes[2], U_strip, T_strip, det_F, cmap="coolwarm",
vmin=1 - det_range, vmax=1 + det_range, lims=lims,
title=r"area ratio $\det F$", label=r"$\det F$")
det_err = det_F - det_exact
err_range = np.abs(det_err).max()
utils.plot_scalar_field(axes[3], U_strip, T_strip, det_err, cmap="coolwarm",
vmin=-err_range, vmax=err_range, lims=lims,
title=r"$\det F$ error vs exact", label="error")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "bent_strip_fields.png"),
copy_to=os.path.join(MEDIA_DIR, "002_bent_strip_fields.png"))
plt.show()
Takeaways#
\(F\) is the local gradient, so it is blind to translation, including each triangle’s own translation on a mesh.
Rotation gives a rotation matrix (\(\det F = 1\)); scale and shear show up directly as diagonal and off-diagonal entries.
On a mesh each triangle has its own \(F\), and the polar decomposition \(F = RS\) separates its rotation from its stretch.
Next: turn \(F\) into a single number measuring how deformed a shape is, the elastic energy.
