17 · Skinning Eigenmodes: a Subspace that Can Rotate#
A high-resolution beam is accurate but slow (tutorial 10): every Backward-Euler step solves a sparse system as large as the mesh. Reduced-order modeling restricts the motion to a small subspace, built once offline, and solves for its \(r \ll n\,\text{dim}\) coordinates \(z\) instead. We compare two bases, linear modal analysis (LMA) and skinning eigenmodes: we time the full solve, show that the subspace shrinks the solve but not the integration, watch a cantilever sag in each space, and rotate the rest shape a full turn to see which subspace can rotate.
Imports, and every tunable parameter of this notebook.
%matplotlib inline
import os
import warnings
import numpy as np
import scipy as sp
import matplotlib.pyplot as plt
from matplotlib.colors import TwoSlopeNorm
import igl
import simkit
import utils
warnings.filterwarnings("ignore", category=sp.linalg.LinAlgWarning) # stiff pin -> benign ill-conditioning
warnings.filterwarnings("ignore", message=".*encountered in matmul") # spurious macOS-BLAS matmul warnings
NOTEBOOK = "017_skinning_eigenmodes" # this file's name
RESULTS_DIR = utils.notebook_results_path(NOTEBOOK) # results/017_skinning_eigenmodes/
MEDIA_DIR = "media" # tracked copies for the website
# beam meshes
WIDTH, HEIGHT = 4.0, 0.5 # beam size
NX_HI, NY_HI = 120, 30 # high-resolution grid of the timing study
NX, NY = 50, 11 # grid of the dynamics and rotation studies
# material and loads
MATERIAL = "macklin-mueller-neo-hookean"
YM, PR = 3000.0, 0.4 # Young's modulus, Poisson ratio
RHO = 1.0 # density
GRAVITY = -9.8 # vertical gravitational acceleration
K_PIN = 1e7 # soft-pin stiffness on the left wall
# Backward-Euler time stepping
DT = 2e-2 # timestep
N_STEPS = 80 # steps of the sag simulation
NEWTON_ITERS = 30 # max Newton iterations per step (with line search)
# subspaces
K_MODES = 12 # skinning eigenmodes (bones); LMA gets K_MODES or 6*K_MODES modes
WEIGHTS_SHOWN = [0, 1, 4, 8] # skinning weight fields drawn
LMA_MODES_SHOWN = [2, 3, 4, 6] # LMA mode shapes drawn
LMA_MODE_AMPLITUDE = 0.4 # largest vertex displacement when drawing a mode shape
# validation
FD_STEP = 1e-6 # central-difference step of the gradient check
FD_NOISE = 0.01 # random perturbation of the subspace coordinates for the check
SEED = 0 # random seed (gradient check and timing pose)
# timing study
TIMING_NOISE = 0.005 # random vertex perturbation of the timed pose (below the edge length)
TIMING_MODE_COUNTS = [2, 5, 10, 20, 40] # skinning eigenmode counts that are timed
TIMING_REPEATS = 5 # timings report the best of this many batches
TIMING_INNER_SPARSE = 3 # calls per batch for the full sparse solve
TIMING_INNER_DENSE = 200 # calls per batch for the (sub-millisecond) dense subspace solve
# rotation study
N_ANGLES = 73 # rest-shape rotations in [0, 360] deg (animation frames)
SWEEP_MODES = np.arange(1, 21) # skinning eigenmode counts of the turn-averaged error sweep
N_ANGLES_SWEEP = 49 # rotations averaged over in the sweep
# videos
FPS_DYN = 20 # sag video
FPS_ROT = 18 # rotation video
# colors
FULL_C = "#d62728" # full space (reference / "slow")
LMA_C = "#1f77b4" # LMA with 6*K_MODES modes (same DOFs as skinning)
LMA_SMALL_C = "#9ecae1" # LMA with K_MODES modes
SKIN_C = "#2ca02c" # skinning eigenmodes

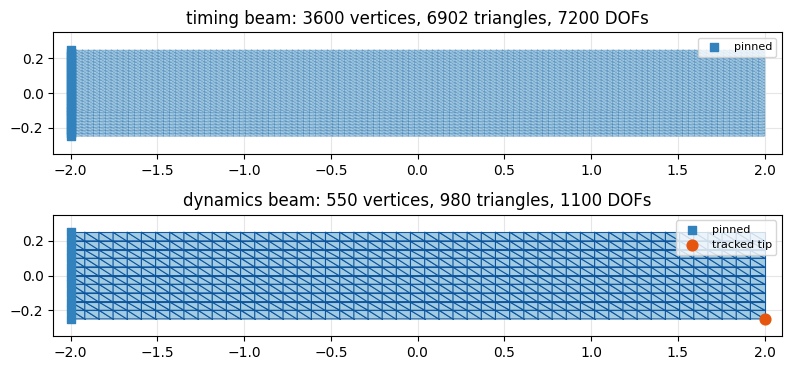

Two beams#
Both are \(4 \times 0.5\) libigl grids with the left wall pinned (blue squares): a high-resolution one for the timing study and a coarser one for the dynamics and rotation studies. The orange dot is the bottom-right tip vertex whose height we track during the sag.
V_hi, T_hi = igl.triangulated_grid(NX_HI, NY_HI) # unit square, NX_HI x NY_HI vertices
X_hi = (V_hi - 0.5) * np.array([WIDTH, HEIGHT]) # centered WIDTH x HEIGHT beam
V_grid, T = igl.triangulated_grid(NX, NY)
X = (V_grid - 0.5) * np.array([WIDTH, HEIGHT])
n, dim = X.shape
pin_hi = np.where(X_hi[:, 0] <= X_hi[:, 0].min() + 1e-6)[0]
pin_idx = np.where(X[:, 0] <= X[:, 0].min() + 1e-6)[0]
tip = int(np.argmax(X[:, 0])) # bottom-right corner
fig, axes = plt.subplots(2, 1, figsize=(11, 3.8))
utils.plot_mesh(axes[0], X_hi, T_hi, pins=pin_hi, lw=0.15,
title=f"timing beam: {len(X_hi)} vertices, {len(T_hi)} triangles, {X_hi.size} DOFs")
utils.plot_mesh(axes[1], X, T, pins=pin_idx,
title=f"dynamics beam: {n} vertices, {len(T)} triangles, {X.size} DOFs")
axes[1].scatter(*X[tip], s=60, color=utils.HANDLE_C, zorder=6, label="tracked tip")
axes[1].legend(loc="upper right", fontsize=8)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "meshes.png"),
copy_to=os.path.join(MEDIA_DIR, "017_meshes.png"))
plt.show()
Constant operators#
beam_operators builds, once per mesh, everything the dynamics reuse: the deformation Jacobian J, triangle areas vol, Lamé parameters, the lumped mass matrix M, the gravity force f_g and the soft pin (Q_pin, b_pin) on the left wall. The figure shows the lumped vertex mass of the dynamics beam. It weights the inertia term and the mass norm \(\lVert\cdot\rVert_M\) of every subspace projection below; boundary vertices carry less mass than interior ones.
def beam_operators(X, T):
"""Constant operators of the pinned neo-Hookean beam, built once from simkit."""
n, dim = X.shape
mu_value, lam_value = simkit.ympr_to_lame(YM, PR)
pin = np.where(X[:, 0] <= X[:, 0].min() + 1e-6)[0]
Q_pin, b_pin = simkit.dirichlet_penalty(pin, X[pin], n, K_PIN)
M_vertex = simkit.massmatrix(X, T, rho=RHO) # (n, n) lumped mass
ops = {
"n": n, "dim": dim,
"J": simkit.deformation_jacobian(X, T),
"vol": simkit.volume(X, T),
"mu": np.full((len(T), 1), mu_value),
"lam": np.full((len(T), 1), lam_value),
"M": sp.sparse.kron(M_vertex, sp.sparse.eye(dim)).tocsc(), # (n*dim, n*dim)
"f_g": simkit.gravity_force(X, T, a=GRAVITY, rho=RHO).reshape(-1, 1),
"Q_pin": Q_pin, "b_pin": b_pin,
}
return ops
ops_hi = beam_operators(X_hi, T_hi)
ops = beam_operators(X, T)

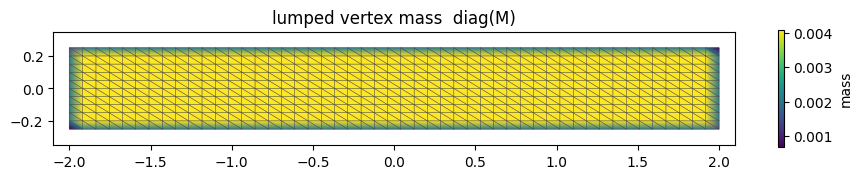

fig, ax = plt.subplots(figsize=(11, 1.9))
utils.plot_scalar_field(ax, X, T, ops["M"].diagonal()[::dim], title="lumped vertex mass diag(M)",
label="mass")
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "vertex_mass.png"),
copy_to=os.path.join(MEDIA_DIR, "017_vertex_mass.png"))
plt.show()
The system: one Backward-Euler step in a subspace#
Each step minimizes the incremental potential below (momentum target \(\tilde x = 2x_n - x_{n-1}\), neo-Hookean elasticity, gravity, wall pin). subspace_beam_system writes it in subspace coordinates \(z\) with \(x = Bz+q\): every term is evaluated on the full \(x\) (full integration, no cubature), and the Galerkin projection \(B^{\top}g\), \(B^{\top}HB\) brings the gradient and Hessian down to \(r\) coordinates. With \(B=I\), \(q=0\) it is the ordinary full-space step.
def subspace_beam_system(ops, B, q, x_curr, x_prev):
"""Backward-Euler step of the pinned beam in subspace coordinates z, where x = B z + q."""
n, dim = ops["n"], ops["dim"]
J, vol, mu, lam = ops["J"], ops["vol"], ops["mu"], ops["lam"]
M, f_g, Q_pin, b_pin = ops["M"], ops["f_g"], ops["Q_pin"], ops["b_pin"]
def energy_func(z):
x = B @ z + q
E_inertia = simkit.energies.kinetic_energy_be(x, x_curr, x_prev, M, DT)
E_elastic = simkit.energies.elastic_energy_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
E_gravity = -(f_g.T @ x).item()
E_pin = simkit.energies.quadratic_energy(x, Q_pin, b_pin)
E_total = E_inertia + E_elastic + E_gravity + E_pin
return E_total
def gradient_func(z):
x = B @ z + q
g_inertia = simkit.energies.kinetic_gradient_be(x, x_curr, x_prev, M, DT)
g_elastic = simkit.energies.elastic_gradient_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
g_gravity = -f_g
g_pin = simkit.energies.quadratic_gradient(x, Q_pin, b_pin)
g_total = g_inertia + g_elastic + g_gravity + g_pin
g_z = B.T @ g_total # Galerkin projection
return g_z
def hessian_func(z):
x = B @ z + q
H_inertia = simkit.energies.kinetic_hessian_be(M, DT)
H_elastic = simkit.energies.elastic_hessian_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL, psd=True)
H_pin = simkit.energies.quadratic_hessian(Q_pin)
H_total = H_inertia + H_elastic + H_pin
H_z = B.T @ (H_total @ B) # Galerkin projection
return H_z
return energy_func, gradient_func, hessian_func
Two subspaces, built once#
Both bases come from the lowest eigenvectors of a mesh operator but use them differently. We build LMA with \(6k\) modes (as many DOFs as skinning) and also keep its lowest \(k\); the printout lists the basis sizes and the lowest eigenvalues.
LMA (
simkit.linear_modal_analysis): the lowest vibration modes are displacement columns, \(x = X + B_{\text{lma}}z\), so \(q = X\). A sum of fixed displacement fields is linear in \(z\), and rotation is not.Skinning eigenmodes (
simkit.skinning_eigenmodes): the lowest Laplacian eigenvectors are skinning weights \(W\), each carrying a \(2\times3\) affine transform, \(x = B_{\text{skin}}z\) with \(q = 0\). That is 6 DOFs per mode, and affine transforms contain rotation.
E_lma, B_lma = simkit.linear_modal_analysis(X, T, 6 * K_MODES) # 6k displacement modes, lowest first
B_lma_small = B_lma[:, :K_MODES] # the lowest k of them
W, E_skin, B_skin = simkit.skinning_eigenmodes(X, T, K_MODES) # k weights -> 6k affine DOFs
q_lma = X.reshape(-1, 1) # LMA: x = X + B z
q_skin = np.zeros((X.size, 1)) # skinning: x = B z
print(f"k = {K_MODES}")
print(f" LMA small basis: {B_lma_small.shape[1]:3d} columns (k displacement modes)")
print(f" LMA basis : {B_lma.shape[1]:3d} columns (6k displacement modes)")
print(f" skin basis : {B_skin.shape[1]:3d} columns (k weights x 6 affine DOFs)")
print(f"lowest LMA eigenvalues : {np.array2string(E_lma[:5], precision=3)}")
print(f"lowest skin eigenvalues: {np.array2string(E_skin[:3], precision=3)}")
k = 12
LMA small basis: 12 columns (k displacement modes)
LMA basis : 72 columns (6k displacement modes)
skin basis : 72 columns (k weights x 6 affine DOFs)
lowest LMA eigenvalues : [-1.009e-13 -3.836e-14 4.272e-14 1.026e-01 6.580e-01]
lowest skin eigenvalues: [2.243e-14 6.166e-01 2.464e+00]

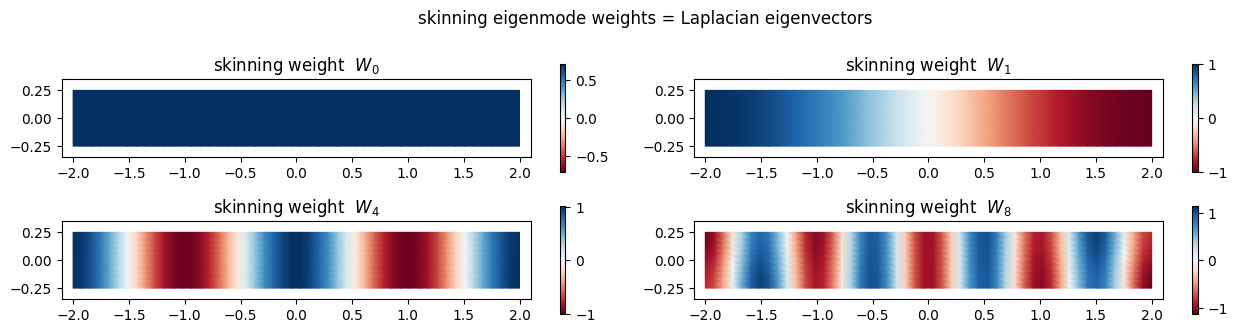

The skinning weights are smooth Laplacian eigenvectors of increasing frequency. \(W_0\) is constant (eigenvalue \(0\)): its affine bone moves the whole beam as one rigid or affine body, which is where exact rotation comes from.
fig, axes = plt.subplots(2, 2, figsize=(13, 3.4))
for ax, j in zip(axes.ravel(), WEIGHTS_SHOWN):
w_max = np.abs(W[:, j]).max()
utils.plot_scalar_field(ax, X, T, W[:, j], cmap="RdBu", vmin=-w_max, vmax=w_max, edges=False,
title=f"skinning weight $W_{{{j}}}$")
fig.suptitle("skinning eigenmode weights = Laplacian eigenvectors")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "skinning_weights.png"),
copy_to=os.path.join(MEDIA_DIR, "017_skinning_weights.png"))
plt.show()

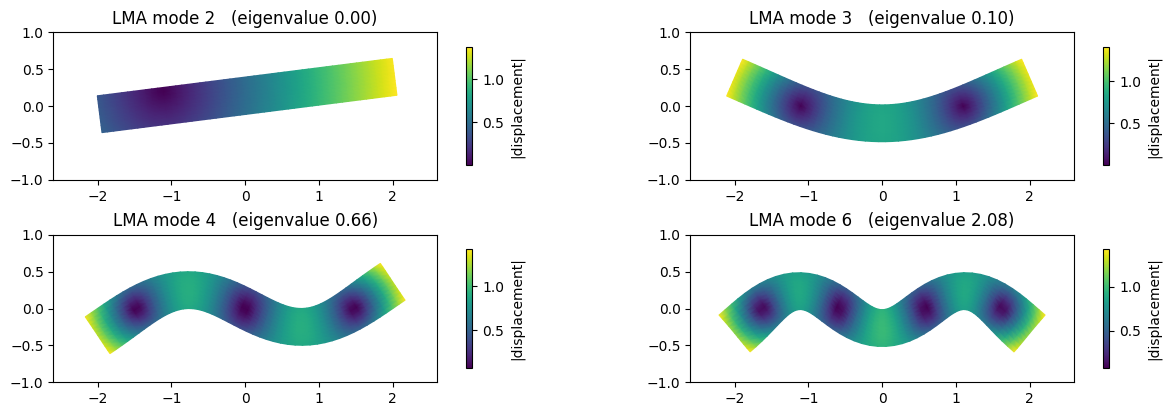

LMA columns are displacement fields instead. Below, the rest beam is displaced along a few of them and colored by displacement magnitude. The first three eigenvalues are \(0\): they span the two translations and the linearized rotation \(\delta x \propto (-y, x)\) (mode 2 here is a mix of them, rotating about a shifted center). The next modes bend the beam.
fig, axes = plt.subplots(2, 2, figsize=(13, 4.2))
for ax, j in zip(axes.ravel(), LMA_MODES_SHOWN):
mode = B_lma[:, j].reshape(n, dim)
magnitude = np.linalg.norm(mode, axis=1)
U = X + LMA_MODE_AMPLITUDE / magnitude.max() * mode
utils.plot_scalar_field(ax, U, T, magnitude, edges=False, label="|displacement|",
lims=((-2.6, 2.6), (-1.0, 1.0)),
title=f"LMA mode {j} (eigenvalue {E_lma[j]:.2f})")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "lma_modes.png"),
copy_to=os.path.join(MEDIA_DIR, "017_lma_modes.png"))
plt.show()

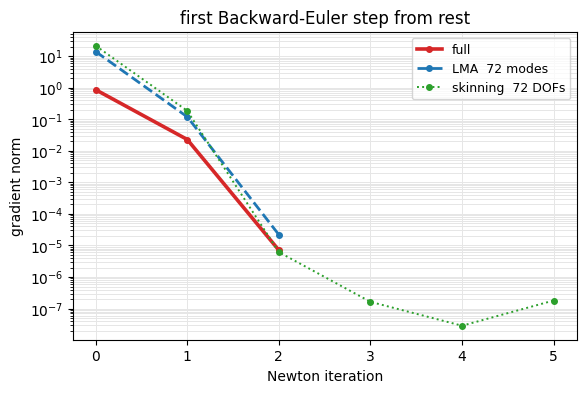

Checking the system#
Before timing anything, two cheap checks on the dynamics beam. The projected gradient \(B^{\top}g\) in the skinning subspace matches a central finite difference of the energy (simkit.gradient_cfd) to about \(10^{-9}\). On the first time step from rest, Newton cuts the gradient norm (in each space’s own coordinates) by five to six orders of magnitude within two steps in every space; the skinning solve then idles at round-off, where the stiff pin meets a dense basis, until its step drops below the tolerance.
x_rest = X.reshape(-1, 1)
rng = np.random.default_rng(SEED)
z_rest_skin = simkit.project_into_subspace(x_rest - q_skin, B_skin, M=ops["M"])
z_check = z_rest_skin + FD_NOISE * rng.standard_normal(z_rest_skin.shape)
energy_func, gradient_func, _ = subspace_beam_system(ops, B_skin, q_skin, x_rest, x_rest)
g_fd = simkit.gradient_cfd(lambda z: np.array(energy_func(z)), z_check, FD_STEP)
g_an = gradient_func(z_check).ravel()
print(f"skinning subspace gradient vs finite differences: relative error "
f"{np.linalg.norm(g_fd - g_an) / np.linalg.norm(g_an):.1e}")
spaces = {
"full": (sp.sparse.identity(X.size, format="csc"), q_skin),
f"LMA {B_lma.shape[1]} modes": (B_lma, q_lma),
f"skinning {B_skin.shape[1]} DOFs": (B_skin, q_skin),
}
grad_norms = {}
for name, (B, q) in spaces.items():
z0 = simkit.project_into_subspace(x_rest - q, B, M=ops["M"])
step_funcs = subspace_beam_system(ops, B, q, x_rest, x_rest)
_, info = simkit.solvers.newton_solver(z0, *step_funcs, max_iter=NEWTON_ITERS,
do_line_search=True, return_info=True)
grad_norms[name] = [np.linalg.norm(g) for g in info["g"]]
print(f" {name:22s}: {info['iters'] + 1} Newton iterations")
fig, ax = utils.residual_plot(grad_norms, colors=dict(zip(spaces, [FULL_C, LMA_C, SKIN_C])),
markers=True, xlabel="Newton iteration", ylabel="gradient norm",
title="first Backward-Euler step from rest", figsize=(6.5, 4))
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "newton_convergence.png"),
copy_to=os.path.join(MEDIA_DIR, "017_newton_convergence.png"))
plt.show()
skinning subspace gradient vs finite differences: relative error 3.7e-09
full : 3 Newton iterations
LMA 72 modes : 3 Newton iterations
skinning 72 DOFs : 6 Newton iterations

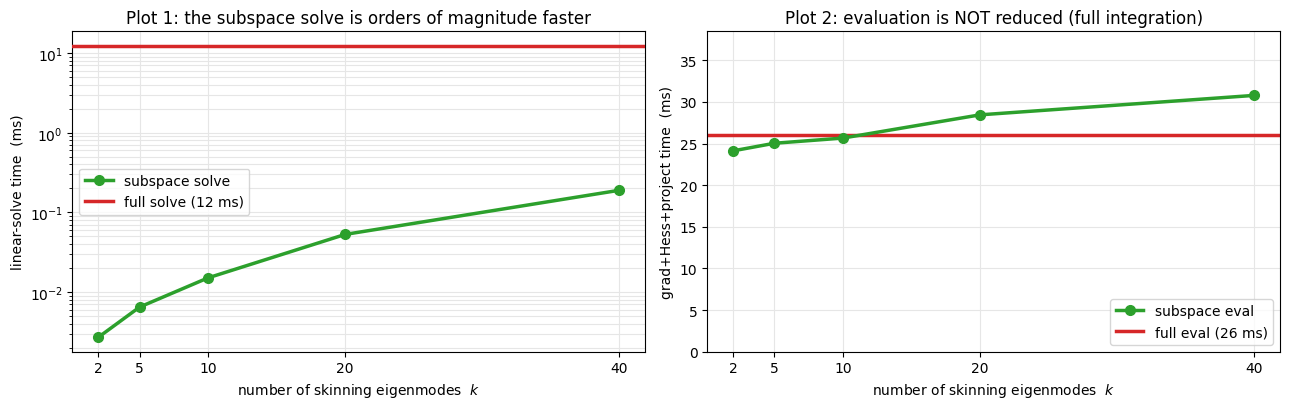

The full solve is slow#
On the high-resolution beam we build the full-space system at a slightly perturbed pose (zero velocity) and time its two halves: evaluation (gradient and Hessian assembly) and the sparse linear solve. utils.best_time reports the best of several batches of calls.
x_rest_hi = X_hi.reshape(-1, 1)
q_zero_hi = np.zeros((X_hi.size, 1))
x_def = x_rest_hi + TIMING_NOISE * rng.standard_normal(x_rest_hi.shape)
_, gradient_full, hessian_full = subspace_beam_system(ops_hi, sp.sparse.identity(X_hi.size, format="csc"),
q_zero_hi, x_rest_hi, x_rest_hi)
def evaluate_full():
return hessian_full(x_def), gradient_full(x_def)
H_full, g_full = evaluate_full()
H_full = H_full.tocsc()
t_eval_full = utils.best_time(evaluate_full, rep=TIMING_REPEATS)
t_solve_full = utils.best_time(lambda: sp.sparse.linalg.spsolve(H_full, -g_full), inner=TIMING_INNER_SPARSE,
rep=TIMING_REPEATS)
print(f"high-res beam: {X_hi.size} DOFs")
print(f"full-space eval (grad+Hess): {t_eval_full * 1e3:7.1f} ms")
print(f"full-space linear solve : {t_solve_full * 1e3:7.1f} ms")
high-res beam: 7200 DOFs
full-space eval (grad+Hess): 26.1 ms
full-space linear solve : 12.3 ms
The subspace shrinks the solve, not the integration#
We now build skinning subspaces with more and more eigenmodes on the same beam and time the same two halves. With full integration the subspace system still evaluates the neo-Hookean energy on every triangle and then projects, so Plot 2 (evaluation) stays at the full-space cost. What collapses is the solve, from a sparse \(n\,\text{dim}\times n\,\text{dim}\) system to a tiny dense \(r\times r\) one (Plot 1, log scale, full solve in red).
solve_sub, eval_sub = [], []
for k in TIMING_MODE_COUNTS:
_, _, B_k = simkit.skinning_eigenmodes(X_hi, T_hi, k)
z_def = simkit.project_into_subspace(x_def, B_k, M=ops_hi["M"])
_, gradient_sub, hessian_sub = subspace_beam_system(ops_hi, B_k, q_zero_hi, x_rest_hi, x_rest_hi)
def evaluate_sub():
return hessian_sub(z_def), gradient_sub(z_def)
H_z, g_z = evaluate_sub()
eval_sub.append(utils.best_time(evaluate_sub, rep=TIMING_REPEATS) * 1e3)
solve_sub.append(utils.best_time(lambda: np.linalg.solve(H_z, -g_z), inner=TIMING_INNER_DENSE,
rep=TIMING_REPEATS) * 1e3)
print(f" skinning k={k:2d} (r={B_k.shape[1]:3d}): solve {solve_sub[-1]:8.5f} ms eval {eval_sub[-1]:6.1f} ms")
mc = np.array(TIMING_MODE_COUNTS)
fig, (axL, axR) = plt.subplots(1, 2, figsize=(13, 4.2))
axL.plot(mc, solve_sub, "-o", color=SKIN_C, lw=2.5, ms=7, label="subspace solve", zorder=3)
axL.axhline(t_solve_full * 1e3, color=FULL_C, lw=2.5, zorder=4, label=f"full solve ({t_solve_full * 1e3:.0f} ms)")
axL.set_yscale("log"); axL.set_xticks(mc)
axL.set_xlabel("number of skinning eigenmodes $k$"); axL.set_ylabel("linear-solve time (ms)")
axL.set_title("Plot 1: the subspace solve is orders of magnitude faster")
axL.legend(loc="center left"); axL.grid(True, which="both", color="0.9")
axR.plot(mc, eval_sub, "-o", color=SKIN_C, lw=2.5, ms=7, label="subspace eval", zorder=3)
axR.axhline(t_eval_full * 1e3, color=FULL_C, lw=2.5, label=f"full eval ({t_eval_full * 1e3:.0f} ms)")
axR.set_xticks(mc); axR.set_ylim(0, max(t_eval_full * 1e3, max(eval_sub)) * 1.25)
axR.set_xlabel("number of skinning eigenmodes $k$"); axR.set_ylabel("grad+Hess+project time (ms)")
axR.set_title("Plot 2: evaluation is NOT reduced (full integration)")
axR.legend(loc="lower right"); axR.grid(True, color="0.9")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "timing.png"),
copy_to=os.path.join(MEDIA_DIR, "017_timing.png"))
plt.show()
skinning k= 2 (r= 12): solve 0.00270 ms eval 24.1 ms
skinning k= 5 (r= 30): solve 0.00646 ms eval 25.0 ms
skinning k=10 (r= 60): solve 0.01504 ms eval 25.7 ms
skinning k=20 (r=120): solve 0.05279 ms eval 28.4 ms
skinning k=40 (r=240): solve 0.18921 ms eval 30.8 ms
Fast solve, but does it look right?#
Cost is only half the story. simulate drops the dynamics beam from rest under gravity, one subspace_beam_system Newton solve per step, and we run it in four spaces: full (\(B=I\)), LMA with \(k\) and with \(6k\) modes, and skinning with \(k\) modes (\(6k\) DOFs). The printout compares the final tip heights.
def simulate(ops, B, q):
"""Drop the beam from rest for N_STEPS Backward-Euler steps in the subspace x = B z + q."""
z = simkit.project_into_subspace(x_rest - q, B, M=ops["M"]) # rest pose in subspace coordinates
z_prev = z.copy()
states = [(B @ z + q).reshape(n, dim)]
for _ in range(N_STEPS):
energy_func, gradient_func, hessian_func = subspace_beam_system(ops, B, q, B @ z + q, B @ z_prev + q)
z_next = simkit.solvers.newton_solver(z, energy_func, gradient_func, hessian_func,
max_iter=NEWTON_ITERS, do_line_search=True)
z_prev, z = z, z_next
states.append((B @ z + q).reshape(n, dim))
return np.array(states)
runs = {
f"full ({X.size} DOFs)": (sp.sparse.identity(X.size, format="csc"), q_skin),
f"LMA ({B_lma_small.shape[1]} DOFs)": (B_lma_small, q_lma),
f"LMA ({B_lma.shape[1]} DOFs)": (B_lma, q_lma),
f"skinning ({B_skin.shape[1]} DOFs)": (B_skin, q_skin),
}
run_colors = dict(zip(runs, [FULL_C, LMA_SMALL_C, LMA_C, SKIN_C]))
states = {name: simulate(ops, B, q) for name, (B, q) in runs.items()}
tip_y = {name: S[:, tip, 1] for name, S in states.items()}
tip_full = tip_y[next(iter(runs))][-1]
for name, ys in tip_y.items():
print(f"{name:22s}: final tip height {ys[-1]:+.2f} ({ys[-1] / tip_full * 100:3.0f}% of the full droop)")
full (1100 DOFs) : final tip height -3.47 (100% of the full droop)
LMA (12 DOFs) : final tip height -0.56 ( 16% of the full droop)
LMA (72 DOFs) : final tip height -1.27 ( 37% of the full droop)
skinning (72 DOFs) : final tip height -2.99 ( 86% of the full droop)
Played side by side, the full beam swings its free end down through a large angle. Both LMA subspaces stall far above it (16% and 37% of the full droop), even with as many DOFs as skinning, because each LMA column is a fixed displacement and a large rotation is not a sum of them. Skinning rotates and tracks the full reference (86% of its droop).
panels = [{"states": S, "T": T, "title": name} for name, S in states.items()]
fig, anim = utils.animate_meshes_grid(panels, lims=((-2.5, 2.5), (-4.2, 0.6)), fps=FPS_DYN, figsize=(17, 4.3),
suptitle="same sag in four spaces: LMA stalls, skinning tracks the full beam")
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "dynamics.mp4"), fps=FPS_DYN,
copy_to=os.path.join(MEDIA_DIR, "017_dynamics.mp4"))
plt.close(fig)
utils.embed_video(video)

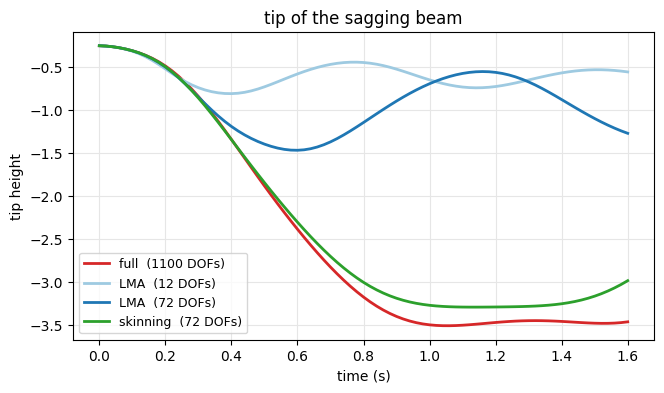

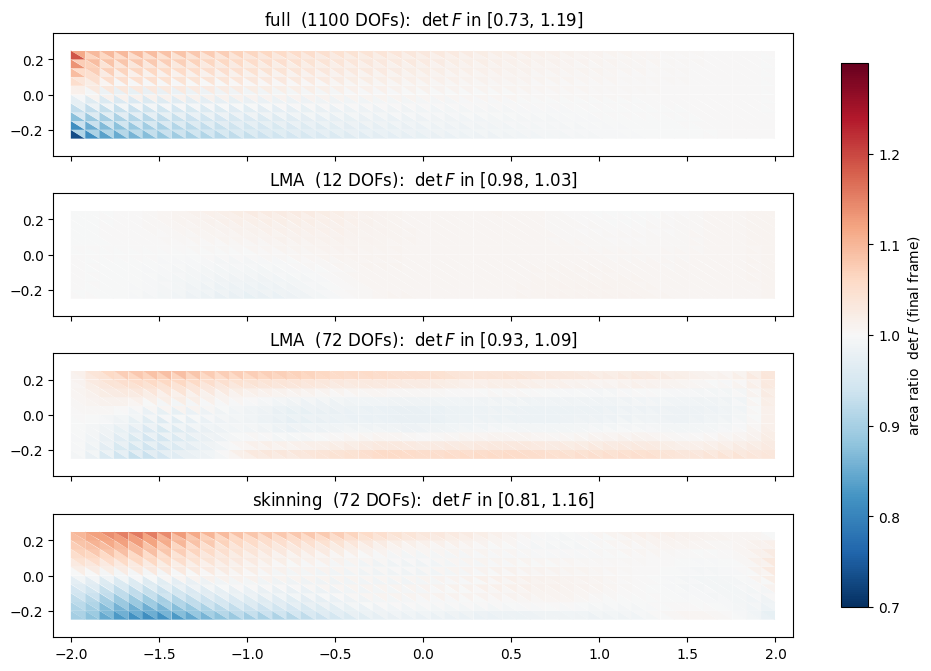

Two validation views of the same runs: the tip height over time, and the area ratio \(\det F\) of every triangle in the final frame, drawn on the rest beam (red = stretched, blue = compressed). Skinning reproduces the full beam’s pattern, a stretched top and a compressed bottom near the wall. The LMA beams barely bend, so they barely strain.
times = DT * np.arange(N_STEPS + 1)
fig, ax = utils.line_plot(times, tip_y, colors=run_colors, xlabel="time (s)", ylabel="tip height",
title="tip of the sagging beam", figsize=(7.5, 4))
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "tip_height.png"),
copy_to=os.path.join(MEDIA_DIR, "017_tip_height.png"))
plt.show()
area_ratio = {name: np.linalg.det((ops["J"] @ S[-1].reshape(-1, 1)).reshape(-1, dim, dim))
for name, S in states.items()}
norm = TwoSlopeNorm(vmin=0.7, vcenter=1.0, vmax=1.3)
fig, axes = plt.subplots(4, 1, figsize=(11, 6.6), sharex=True, layout="constrained")
for ax, (name, S) in zip(axes, states.items()):
m = utils.plot_scalar_field(ax, X, T, area_ratio[name], cmap="RdBu_r", norm=norm, edges=False, colorbar=False,
title=f"{name}: $\\det F$ in [{area_ratio[name].min():.2f}, {area_ratio[name].max():.2f}]")
fig.colorbar(m, ax=axes.tolist(), shrink=0.9, label="area ratio $\\det F$ (final frame)")
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "area_ratio.png"),
copy_to=os.path.join(MEDIA_DIR, "017_area_ratio.png"))
plt.show()
The decisive test: rotate the rest shape a full turn#
Take the rest beam, rotate it by \(\theta\) through \(360^\circ\), and ask each subspace to reproduce that rigid motion: project the rotated mesh \(x_\theta\) into the subspace in the mass norm (simkit.project_into_subspace), reconstruct \(Bz+q\), and measure the relative error \(\lVert Bz+q - x_\theta\rVert_M / \lVert x_\theta\rVert_M\). fit_poses does exactly this for a list of target poses.
def fit_poses(B, q, targets):
"""Best mass-norm fit B z + q of each target pose, and its relative mass-norm error."""
M = ops["M"]
BMB = B.T @ (M @ B) # reused by every projection
fits, errors = [], []
for y in targets:
z = simkit.project_into_subspace(y - q, B, M=M, BMB=BMB)
fit = B @ z + q
d = fit - y
errors.append(np.sqrt((d.T @ M @ d).item() / (y.T @ M @ y).item()))
fits.append(fit.reshape(n, dim))
return fits, np.array(errors)
def rotated_rest(angles_deg):
"""The rest beam rotated about its center by each angle, as stacked columns."""
poses = []
for th in np.deg2rad(angles_deg):
R = np.array([[np.cos(th), -np.sin(th)], [np.sin(th), np.cos(th)]])
poses.append((X @ R.T).reshape(-1, 1))
return poses
angles = np.linspace(0, 360, N_ANGLES)
targets = rotated_rest(angles)
fits_lma_small, err_lma_small = fit_poses(B_lma_small, q_lma, targets)
fits_lma, err_lma = fit_poses(B_lma, q_lma, targets)
fits_skin, err_skin = fit_poses(B_skin, q_skin, targets)
i_peak = int(np.argmax(err_lma))
print(f"LMA ({B_lma_small.shape[1]:2d} DOFs) error: 0 -> {err_lma_small.max():.3f} (peak at {angles[np.argmax(err_lma_small)]:.0f} deg) -> 0")
print(f"LMA ({B_lma.shape[1]:2d} DOFs) error: 0 -> {err_lma.max():.3f} (peak at {angles[i_peak]:.0f} deg) -> 0")
print(f"skin ({B_skin.shape[1]:2d} DOFs) error: max {err_skin.max():.1e} over all angles")
LMA (12 DOFs) error: 0 -> 0.342 (peak at 180 deg) -> 0
LMA (72 DOFs) error: 0 -> 0.055 (peak at 180 deg) -> 0
skin (72 DOFs) error: max 8.5e-10 over all angles
A rotation is rigid (no strain, the cheapest thing a body can do), yet LMA cannot represent it. Its span contains the linearized rotation exactly, but a finite one, \((R_\theta - I)X = \sin\theta\,(-y, x) + (\cos\theta - 1)\,X\), also needs the uniform-scaling field \(X\), which low-frequency modes capture only partly. The error is therefore \(1-\cos\theta\) times the missing part of \(X\) and peaks upside-down, where the LMA reconstructions (blue, target ghosted in gray) shrink and warp the beam; \(6k\) modes only lower the peak. Skinning carries a rotation in every bone’s affine block and matches the target at every angle, at round-off level. The still saved to media/ is the \(180^\circ\) frame.
ghosts = [y.reshape(n, dim) for y in targets]
fits = {f"LMA ({B_lma_small.shape[1]} DOFs)": (fits_lma_small, err_lma_small, LMA_C),
f"LMA ({B_lma.shape[1]} DOFs)": (fits_lma, err_lma, LMA_C),
f"skinning ({B_skin.shape[1]} DOFs)": (fits_skin, err_skin, SKIN_C)}
rot_panels = [{"states": F, "T": T, "ghost": ghosts, "color": c, "title": f"{name} reconstruction",
"label": name, "ghost_label": "target (rotated rest)"} for name, (F, _, c) in fits.items()]
fig, anim = utils.animate_meshes_trace(
rot_panels, angles, {name: err for name, (_, err, _) in fits.items()},
colors=dict(zip(fits, [LMA_SMALL_C, LMA_C, SKIN_C])), lims=((-3.0, 3.0), (-3.0, 3.0)),
xlabel="rest-shape rotation (deg)", ylabel="reconstruction error (mass norm)",
trace_title="LMA error peaks upside-down", fps=FPS_ROT, figsize=(19, 4.6))
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "rotation_error.mp4"), fps=FPS_ROT,
copy_to=os.path.join(MEDIA_DIR, "017_rotation_error.mp4"))
anim.set_frame(i_peak)
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "rotation_error.png"),
copy_to=os.path.join(MEDIA_DIR, "017_rotation_error.png"))
plt.close(fig)
utils.embed_video(video)

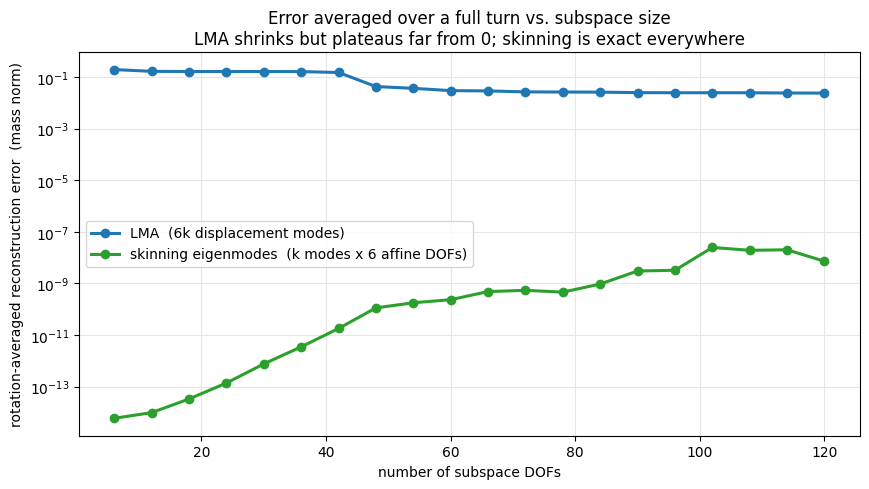

Does adding modes fix it? Average the error over a full turn#
The curves above are for fixed bases. For each of 20 subspace sizes (\(k\) skinning modes against \(6k\) LMA modes, the same DOFs) we average the reconstruction error over a full \(360^\circ\) turn. More modes let LMA chase the rotation a little better, but a linear basis never contains it, so its error plateaus far from zero. Skinning is exact at every size, even with a single bone (6 DOFs); its tiny error only grows with the conditioning of the larger bases.
sweep_targets = rotated_rest(np.linspace(0, 360, N_ANGLES_SWEEP))
dofs, turn_err_lma, turn_err_skin = [], [], []
for k in SWEEP_MODES:
_, B_lma_k = simkit.linear_modal_analysis(X, T, 6 * k)
_, _, B_skin_k = simkit.skinning_eigenmodes(X, T, k)
dofs.append(B_skin_k.shape[1])
turn_err_lma.append(fit_poses(B_lma_k, q_lma, sweep_targets)[1].mean())
turn_err_skin.append(fit_poses(B_skin_k, q_skin, sweep_targets)[1].mean())
print(f"LMA : up to {dofs[-1]:3d} DOFs -> turn-averaged error plateaus at {min(turn_err_lma):.3f}")
print(f"skin: up to {dofs[-1]:3d} DOFs -> turn-averaged error at most {max(turn_err_skin):.1e}")
fig, ax = plt.subplots(figsize=(8.8, 5.0))
ax.plot(dofs, turn_err_lma, "-o", color=LMA_C, lw=2.2, ms=6, label="LMA (6k displacement modes)")
ax.plot(dofs, turn_err_skin, "-o", color=SKIN_C, lw=2.2, ms=6, label="skinning eigenmodes (k modes x 6 affine DOFs)")
ax.set_yscale("log")
ax.set_xlabel("number of subspace DOFs"); ax.set_ylabel("rotation-averaged reconstruction error (mass norm)")
ax.set_title("Error averaged over a full turn vs. subspace size\nLMA shrinks but plateaus far from 0; skinning is exact everywhere")
ax.grid(True, which="both", color="0.9"); ax.legend(loc="center left")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "integrated_error.png"),
copy_to=os.path.join(MEDIA_DIR, "017_integrated_error.png"))
plt.show()
LMA : up to 120 DOFs -> turn-averaged error plateaus at 0.024
skin: up to 120 DOFs -> turn-averaged error at most 2.5e-08
Takeaways#
A subspace \(x=Bz+q\) replaces an \(n\,\text{dim}\)-DOF solve with an \(r\)-DOF one. With full integration the gradient and Hessian still cost a full assembly: the subspace shrinks the linear solve, the part that explodes with resolution.
LMA is a sum of fixed displacement fields, linear in \(z\). Rotation lies outside it: the error of a rotated rest shape peaks at \(180^\circ\), and in dynamics the free end refuses to swing, whatever the number of modes.
Skinning eigenmodes attach an affine transform (which contains rotation) to each Laplacian-eigenvector weight, so they reproduce rigid rotation at every angle and track the full-order sag.
Rule of thumb: if the motion rotates (cantilevers, tails, characters), use a rotation-aware subspace such as skinning eigenmodes.
