10 · Resolution and Cost: the Accuracy/Speed Trade-off#
Refining a mesh makes a simulation more accurate, but every solve more expensive. On a soft cantilever sagging under gravity, we measure Newton-solve time and tip-deflection error at ten resolutions against a very fine reference, and see why a super-fine mesh is accurate but too slow to iterate on.
Imports, and every tunable parameter of this notebook.
%matplotlib inline
import os
import time
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
import igl
import simkit
import utils
NOTEBOOK = "010_time_complexity" # this file's name
RESULTS_DIR = utils.notebook_results_path(NOTEBOOK) # results/010_time_complexity/
MEDIA_DIR = "media" # tracked copies for the website
# beam and material
WIDTH, HEIGHT = 2.0, 0.3 # cantilever size
YM, PR = 800.0, 0.4 # Young's modulus (soft -> large, obvious sag), Poisson ratio
RHO = 1.0 # density
GRAVITY = -9.8 # vertical acceleration
MATERIAL = "macklin-mueller-neo-hookean" # simkit elastic material
K_PIN = 1e7 # soft-pin stiffness on the left edge
# Newton solve
NEWTON_ITERS = 50 # max Newton iterations per static solve
NEWTON_TOL = 1e-6 # stop once the step norm drops below this
# resolution sweep: (nx, ny) = vertices along the length / height
RESOLUTIONS = [(5, 2), (7, 3), (10, 4), (14, 5), (19, 6), (26, 9), (34, 11), (44, 15), (56, 19), (70, 23)]
REF_RES = (90, 30) # fine "ground truth" mesh
I_GOOD = 4 # index into RESOLUTIONS of the "good enough" mesh
# animation
ANIM_MESHES = [(7, 3, "coarse"), (16, 6, "medium"), (32, 11, "fine")]
RAMP_FRAMES, HOLD_FRAMES = 22, 12 # gravity ramps 0 -> 1, then holds at full gravity
FPS = 20 # video frame rate
The beam and its meshes#
beam_mesh lays an nx × ny vertex grid over the beam (libigl’s unit-square grid, centered and
scaled). It also returns the left-edge vertices we pin and the bottom-right tip vertex whose height
\(y\) we measure.
def beam_mesh(nx, ny):
"""nx x ny vertex grid over the WIDTH x HEIGHT beam, its pinned left edge and its tip vertex."""
V, T = igl.triangulated_grid(nx, ny)
X = (V - 0.5) * np.array([WIDTH, HEIGHT])
pin_idx = np.where(X[:, 0] <= X[:, 0].min() + 1e-6)[0]
tip_idx = int(np.argmax(X[:, 0]))
return X, T, pin_idx, tip_idx

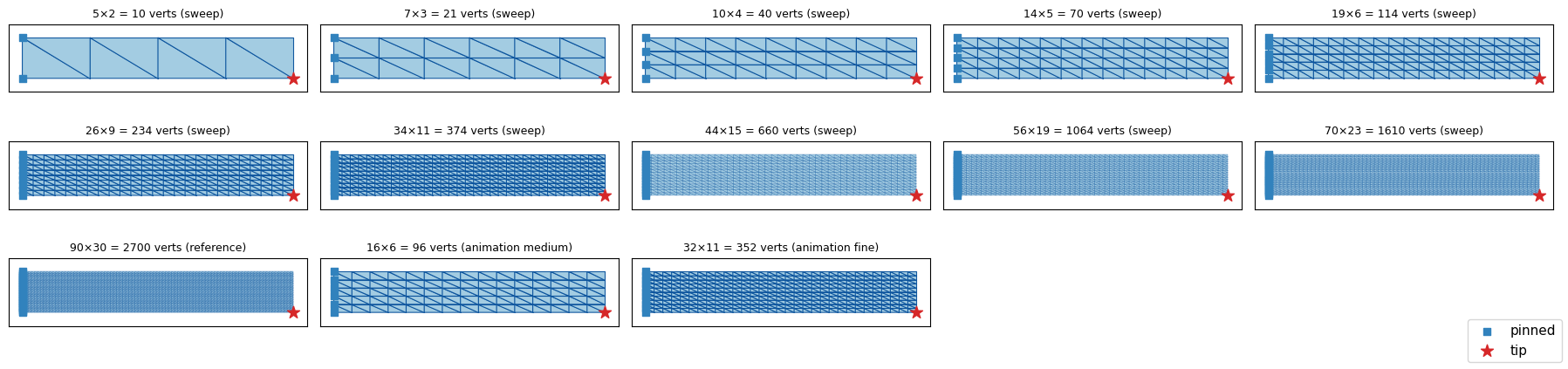

Every mesh this notebook solves on, at rest: the ten sweep resolutions, the fine reference, and the two extra animation meshes (the coarse animation beam reuses the 7×3 sweep mesh). Blue squares mark the pinned left edge and the red star marks the measured tip.
mesh_panels = [(res, "sweep") for res in RESOLUTIONS] + [(REF_RES, "reference")]
mesh_panels += [((nx, ny), f"animation {label}") for nx, ny, label in ANIM_MESHES if (nx, ny) not in RESOLUTIONS]
fig, axes = plt.subplots(3, 5, figsize=(18, 4.4))
for ax, ((nx, ny), role) in zip(axes.flat, mesh_panels):
X, T, pin_idx, tip_idx = beam_mesh(nx, ny)
utils.plot_mesh(ax, X, T, pins=pin_idx, lw=0.8 if nx < 40 else 0.2,
title=f"{nx}×{ny} = {len(X)} verts ({role})")
ax.scatter(*X[tip_idx], marker="*", s=110, color="#d62728", zorder=6, label="tip")
ax.get_legend().remove()
ax.title.set_fontsize(9)
ax.set_xticks([]); ax.set_yticks([])
for ax in axes.flat[len(mesh_panels):]:
ax.axis("off")
fig.legend(*axes.flat[0].get_legend_handles_labels(), loc="lower right", fontsize=11)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "meshes.png"),
copy_to=os.path.join(MEDIA_DIR, "010_meshes.png"))
plt.show()
The system: elastic + pin + gravity#
gravity_beam_system is our standard static cantilever. It precomputes the per-mesh operators once and
returns closures for the energy, gradient and Hessian of three terms: the elastic material, a stiff
quadratic pin on the left edge, and gravity. Gravity is linear in \(x\), so it adds no Hessian
term. gravity_scale lets the animation ramp gravity up.
def gravity_beam_system(X, T, pin_idx, gravity_scale=1.0):
"""Cantilever under gravity: elastic + soft pin on the left edge + gravity, in stacked positions x."""
n, dim = X.shape
J = simkit.deformation_jacobian(X, T)
vol = simkit.volume(X, T)
mu_s, lam_s = simkit.ympr_to_lame(YM, PR)
mu = np.full((len(T), 1), mu_s)
lam = np.full((len(T), 1), lam_s)
Q_pin, b_pin = simkit.dirichlet_penalty(pin_idx, X[pin_idx], n, K_PIN)
f_g = gravity_scale * simkit.gravity_force(X, T, a=GRAVITY, rho=RHO).reshape(-1, 1)
def energy_func(x):
E_elastic = simkit.energies.elastic_energy_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
E_pin = simkit.energies.quadratic_energy(x, Q_pin, b_pin)
E_gravity = -(f_g.T @ x).item()
E_total = E_elastic + E_pin + E_gravity
return E_total
def gradient_func(x):
g_elastic = simkit.energies.elastic_gradient_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
g_pin = simkit.energies.quadratic_gradient(x, Q_pin, b_pin)
g_gravity = -f_g
g_total = g_elastic + g_pin + g_gravity
return g_total
def hessian_func(x):
H_elastic = simkit.energies.elastic_hessian_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL, psd=True)
H_pin = simkit.energies.quadratic_hessian(Q_pin)
H_total = H_elastic + H_pin
return H_total
return energy_func, gradient_func, hessian_func
timed_static_solve builds the beam at one resolution and times only the Newton solve from the rest
shape, using time.perf_counter. It records the vertex count, the Newton iteration count, whether the
last step fell below NEWTON_TOL (rather than hitting the NEWTON_ITERS cap), the gradient norm at every
iteration, and the tip height.
def timed_static_solve(nx, ny, gravity_scale=1.0):
"""Build the nx x ny beam and its system, then time one Newton solve starting from rest."""
X, T, pin_idx, tip_idx = beam_mesh(nx, ny)
energy_func, gradient_func, hessian_func = gravity_beam_system(X, T, pin_idx, gravity_scale)
t0 = time.perf_counter()
# silence spurious floating-point flags raised by BLAS matmuls on large vectors (all values stay finite)
with np.errstate(divide="ignore", over="ignore", invalid="ignore"):
x, info = simkit.solvers.newton_solver(X.reshape(-1, 1), energy_func, gradient_func, hessian_func,
tolerance=NEWTON_TOL, max_iter=NEWTON_ITERS,
do_line_search=True, return_info=True)
seconds = time.perf_counter() - t0
U = x.reshape(X.shape)
converged = np.linalg.norm(info["alphas"][-1] * info["dx"][-1]) < NEWTON_TOL
grad_norms = [np.linalg.norm(g) for g in info["g"]] + [np.linalg.norm(gradient_func(x))]
return dict(X=X, T=T, U=U, n=len(X), seconds=seconds, iters=info["iters"] + 1, converged=converged,
grad_norms=grad_norms, tip_y=U[tip_idx, 1])
Cost and accuracy across 10 resolutions#
Run the sweep and the fine reference. The error of each run is the distance between its tip height and the reference tip height. The table lists the vertex count, solve time, Newton iterations (and whether the solve converged), tip height and error for each run.
sweep = [timed_static_solve(nx, ny) for nx, ny in RESOLUTIONS]
ref = timed_static_solve(*REF_RES)
verts = np.array([run["n"] for run in sweep])
times = np.array([run["seconds"] for run in sweep])
iters = np.array([run["iters"] for run in sweep])
errors = np.array([abs(run["tip_y"] - ref["tip_y"]) for run in sweep])
print(f"fine reference: {ref['n']} verts, {ref['seconds']*1000:.0f} ms, {ref['iters']} Newton iters "
f"(converged: {ref['converged']}), tip_y = {ref['tip_y']:.4f}")
for run, err in zip(sweep, errors):
print(f" {run['n']:5d} verts {run['seconds']*1000:7.1f} ms {run['iters']:2d} iters "
f"converged {str(run['converged']):5s} tip_y {run['tip_y']:.4f} error {err:.2e}")
fine reference: 2700 verts, 763 ms, 26 Newton iters (converged: True), tip_y = -1.5921
10 verts 5.7 ms 12 iters converged True tip_y -0.5823 error 1.01e+00
21 verts 7.5 ms 17 iters converged True tip_y -0.9618 error 6.30e-01
40 verts 10.3 ms 20 iters converged True tip_y -1.2361 error 3.56e-01
70 verts 16.5 ms 22 iters converged True tip_y -1.3884 error 2.04e-01
114 verts 29.7 ms 26 iters converged True tip_y -1.4685 error 1.24e-01
234 verts 56.1 ms 27 iters converged True tip_y -1.5326 error 5.95e-02
374 verts 74.8 ms 23 iters converged True tip_y -1.5567 error 3.54e-02
660 verts 193.4 ms 33 iters converged True tip_y -1.5738 error 1.83e-02
1064 verts 271.0 ms 26 iters converged True tip_y -1.5828 error 9.31e-03
1610 verts 361.1 ms 22 iters converged True tip_y -1.5880 error 4.10e-03

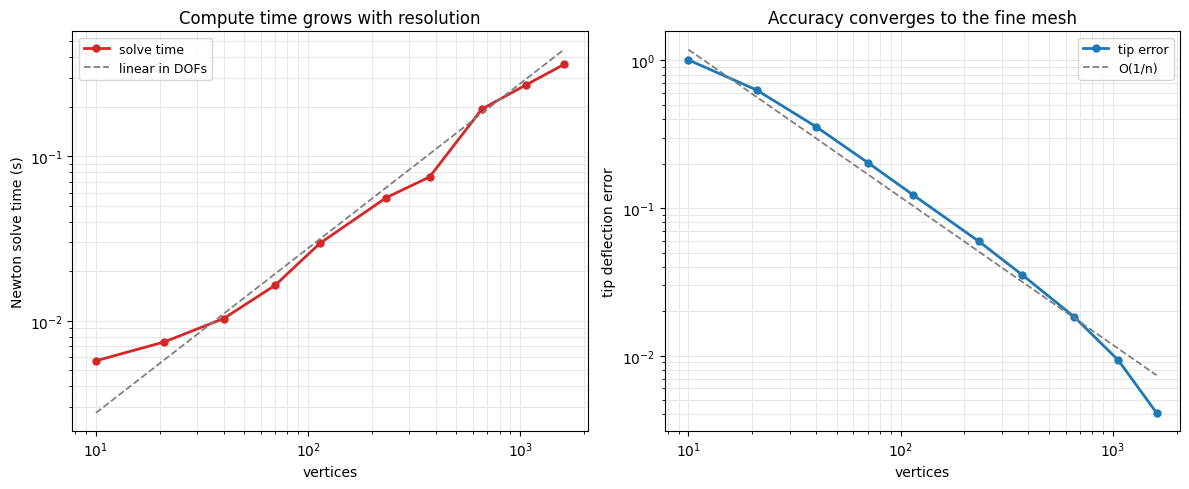

Compute time vs resolution, and accuracy vs resolution#
Both plots use log-log axes with dashed reference slopes. Solve time grows about linearly with the vertex count at these sizes (left), while the tip error falls roughly like \(O(1/n)\) (right), so each extra digit of accuracy costs about ten times more compute. The last two error points dip below that slope only because those meshes are already close to the fine reference they are measured against.
fig, axes = plt.subplots(1, 2, figsize=(12, 5))
utils.loglog_plot(verts, {"solve time": times}, xlabel="vertices", ylabel="Newton solve time (s)",
colors={"solve time": "#d62728"}, ref_slopes={"linear in DOFs": 1},
title="Compute time grows with resolution", ax=axes[0])
utils.loglog_plot(verts, {"tip error": errors}, xlabel="vertices", ylabel="tip deflection error",
colors={"tip error": "#1f77b4"}, ref_slopes={"O(1/n)": -1},
title="Accuracy converges to the fine mesh", ax=axes[1])
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "cost_accuracy.png"),
copy_to=os.path.join(MEDIA_DIR, "010_cost_accuracy.png"))
plt.show()

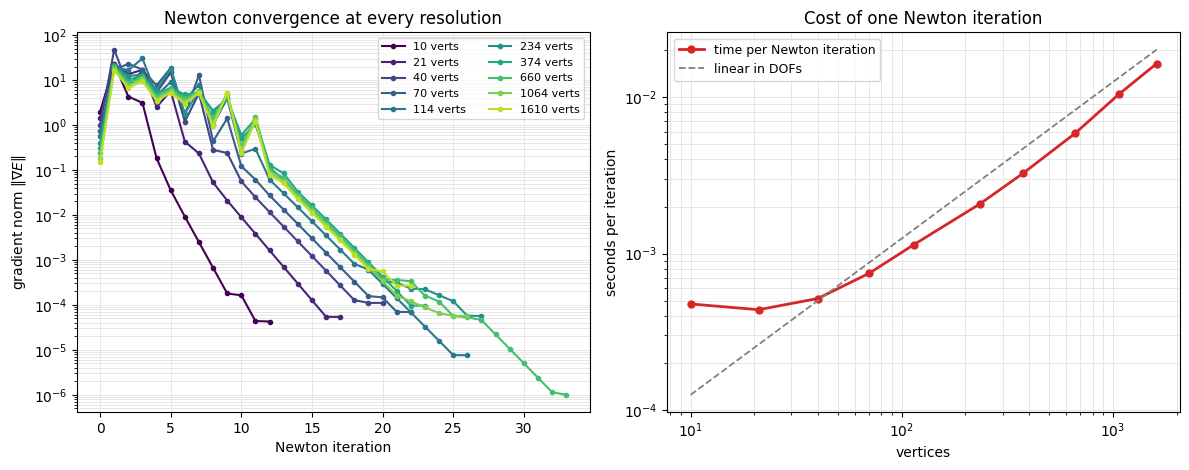

Where the time goes: Newton iterations#
Validation (left): every solve reaches NEWTON_TOL before the NEWTON_ITERS cap. The first full Newton
step from the rest shape overshoots, so the gradient norm first jumps by about an order of magnitude (the
line search only guarantees that the energy decreases). Near equilibrium it falls steadily, five to seven
orders of magnitude below its peak. The iteration count grows only mildly (12 on the coarsest mesh, 20–33
from 40 vertices up), so solve time grows mostly through the cost of one iteration (right): a Hessian
assembly, a bigger sparse solve and a few line-search energy evaluations. Fixed per-call overhead dominates
only at the smallest sizes.
fig, axes = plt.subplots(1, 2, figsize=(12, 4.8))
for run, color in zip(sweep, plt.cm.viridis(np.linspace(0.0, 0.9, len(sweep)))):
axes[0].semilogy(run["grad_norms"], "-o", ms=3, color=color, label=f"{run['n']} verts")
axes[0].set(xlabel="Newton iteration", ylabel=r"gradient norm $\|\nabla E\|$",
title="Newton convergence at every resolution")
axes[0].grid(True, which="both", color="0.9", linewidth=0.7)
axes[0].legend(fontsize=8, ncol=2)
utils.loglog_plot(verts, {"time per Newton iteration": times / iters}, xlabel="vertices",
ylabel="seconds per iteration", colors={"time per Newton iteration": "#d62728"},
ref_slopes={"linear in DOFs": 1}, title="Cost of one Newton iteration", ax=axes[1])
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "newton_iterations.png"),
copy_to=os.path.join(MEDIA_DIR, "010_newton_iterations.png"))
plt.show()
Watching three resolutions sag under gravity#
Ramp gravity \(0 \rightarrow 1\) over RAMP_FRAMES frames at three resolutions, then hold at full gravity for
HOLD_FRAMES frames so the final equilibrium stays on screen. Each frame is an independent static solve from
rest, not a dynamic simulation. Each panel title gives the average solve time per frame.
gravity_ramp = np.concatenate([np.linspace(0.0, 1.0, RAMP_FRAMES), np.ones(HOLD_FRAMES)])
anim_runs = {label: [timed_static_solve(nx, ny, g) for g in gravity_ramp] for nx, ny, label in ANIM_MESHES}
panels = [{"states": [run["U"] for run in runs], "T": runs[0]["T"],
"title": f"{label}: {runs[0]['n']} verts, {1000*np.mean([run['seconds'] for run in runs]):.0f} ms/solve"}
for label, runs in anim_runs.items()]
fig, anim = utils.animate_meshes_grid(panels, lims=((-1.2, 1.2), (-1.8, 0.3)), fps=FPS,
suptitle="Same beam, three resolutions, sagging under gravity")
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "resolution.mp4"), fps=FPS,
copy_to=os.path.join(MEDIA_DIR, "010_resolution.mp4"))
plt.close(fig)
utils.embed_video(video)

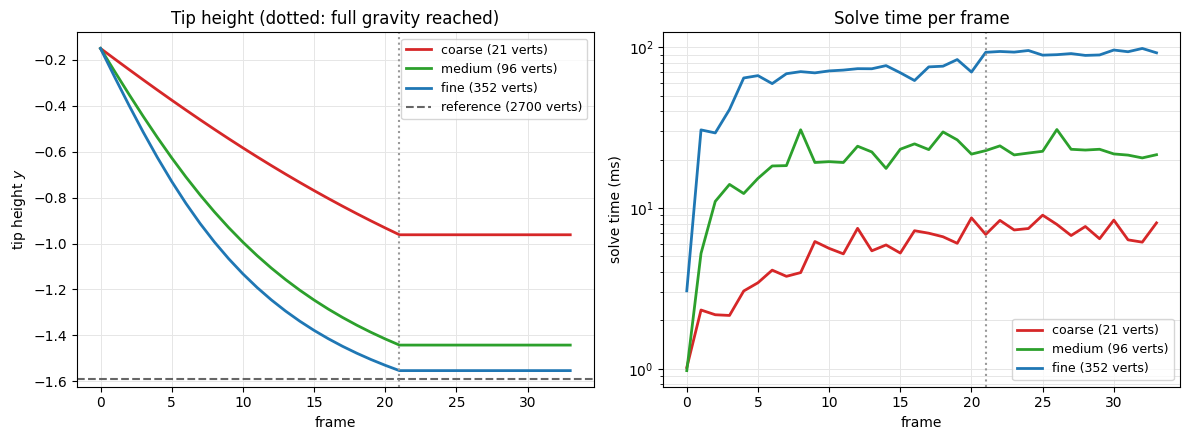

The medium and fine beams reach nearly the same large droop. The coarse one sags much less, because a few large linear triangles are too stiff in bending. The next plot shows this frame by frame. On the left, the coarse tip stops near \(y=-0.96\), far above the reference’s \(-1.59\) (dashed). On the right, each finer mesh costs roughly 3–4× more per frame.
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
for (label, runs), color in zip(anim_runs.items(), ["#d62728", "#2ca02c", "#1f77b4"]):
name = f"{label} ({runs[0]['n']} verts)"
axes[0].plot([run["tip_y"] for run in runs], "-", lw=2, color=color, label=name)
axes[1].semilogy([1000 * run["seconds"] for run in runs], "-", lw=2, color=color, label=name)
axes[0].axhline(ref["tip_y"], ls="--", color="0.4", label=f"reference ({ref['n']} verts)")
axes[0].axvline(RAMP_FRAMES - 1, ls=":", color="0.6")
axes[1].axvline(RAMP_FRAMES - 1, ls=":", color="0.6")
axes[0].set(xlabel="frame", ylabel="tip height $y$", title="Tip height (dotted: full gravity reached)")
axes[1].set(xlabel="frame", ylabel="solve time (ms)", title="Solve time per frame")
for ax in axes:
ax.grid(True, which="both", color="0.9", linewidth=0.7)
ax.legend(fontsize=9)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "animation_tip_and_time.png"),
copy_to=os.path.join(MEDIA_DIR, "010_animation_tip_and_time.png"))
plt.show()
Why “just refine it” is a trap#
Compare the mid-resolution “good enough” run (I_GOOD) with the fine reference, in time per solve and
in tip error.
good = sweep[I_GOOD]
rel = errors[I_GOOD] / abs(ref["tip_y"])
print(f"good-enough ({good['n']:5d} verts): {good['seconds']*1000:8.1f} ms/solve ({rel*100:.0f}% tip error)")
print(f"fine ({ref['n']:5d} verts): {ref['seconds']*1000:8.1f} ms/solve")
print(f"\nThe fine mesh is ~{ref['seconds']/good['seconds']:.0f}x slower per solve for a tip deflection")
print(f"within {rel*100:.0f}% of it. Interactive editing (many solves/second) is impossible")
print("long before that accuracy is worth it -- pick the coarsest mesh that captures the behavior.")
good-enough ( 114 verts): 29.7 ms/solve (8% tip error)
fine ( 2700 verts): 763.3 ms/solve
The fine mesh is ~26x slower per solve for a tip deflection
within 8% of it. Interactive editing (many solves/second) is impossible
long before that accuracy is worth it -- pick the coarsest mesh that captures the behavior.

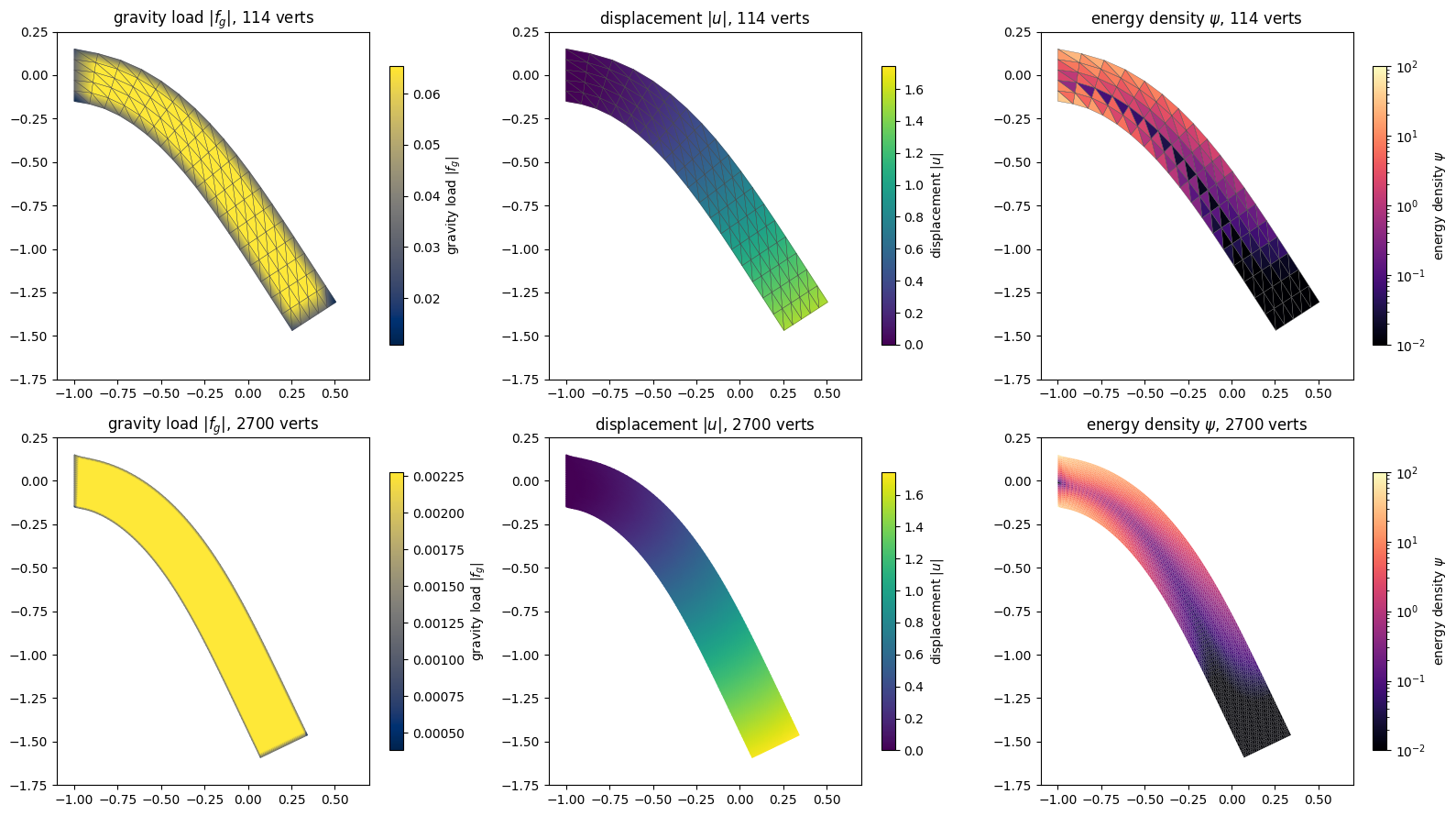

The fields agree as well, drawn on the deformed good-enough mesh (top) and reference mesh (bottom). The gravity load \(|f_g|\) is lumped mass × \(g\), so it is smaller on the boundary and is split among more vertices on the fine mesh. Displacement and energy density share color scales across the rows. Bending energy concentrates in the top and bottom fibers near the clamped root, around a low-energy neutral axis. The printout checks that \(\sum_e \psi_e\,\mathrm{vol}_e\) equals the elastic energy the solver minimized.
mu_s, lam_s = simkit.ympr_to_lame(YM, PR)
disp_max = np.linalg.norm(ref["U"] - ref["X"], axis=1).max()
fig, axes = plt.subplots(2, 3, figsize=(16, 9))
for row, run in zip(axes, [good, ref]):
X, T, U = run["X"], run["T"], run["U"]
f_g = simkit.gravity_force(X, T, a=GRAVITY, rho=RHO)
F = simkit.deformation_gradient(X, T, U)
mu, lam = np.full((len(T), 1), mu_s), np.full((len(T), 1), lam_s)
psi = simkit.energies.elastic_energy_element_F(F, mu, lam, MATERIAL)
vol = simkit.volume(X, T)
E_elastic = simkit.energies.elastic_energy_x(U, simkit.deformation_jacobian(X, T), mu, lam, vol, MATERIAL)
print(f"{run['n']:5d} verts: sum(psi * vol) = {(psi * vol).sum():.4f} elastic_energy_x = {E_elastic:.4f}")
fields = [
(np.linalg.norm(f_g, axis=1), "gravity load $|f_g|$", dict(cmap="cividis")),
(np.linalg.norm(U - X, axis=1), "displacement $|u|$", dict(vmin=0.0, vmax=disp_max)),
(psi, r"energy density $\psi$", dict(cmap="magma", norm=LogNorm(1e-2, 1e2))),
]
for ax, (values, label, style) in zip(row, fields):
utils.plot_scalar_field(ax, U, T, values, title=f"{label}, {run['n']} verts", label=label,
edges=run["n"] < 500, lims=((-1.1, 0.7), (-1.75, 0.25)), **style)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "equilibrium_fields.png"),
copy_to=os.path.join(MEDIA_DIR, "010_equilibrium_fields.png"))
plt.show()
114 verts: sum(psi * vol) = 1.4002 elastic_energy_x = 1.4002
2700 verts: sum(psi * vol) = 1.4579 elastic_energy_x = 1.4579
Takeaways#
Cost grows about linearly with vertex count at these sizes. Newton needs only mildly more iterations on finer meshes, but each iteration assembles and solves a bigger sparse system.
Accuracy improves with resolution, but with diminishing returns: tip error falls roughly like \(O(1/n)\), so each extra digit of tip accuracy costs about 10× more compute.
A super-fine mesh is accurate yet too slow to iterate on. Pick the coarsest mesh that captures the behavior.
