15 · Pneumatic Actuation: Inflating a Chamber to Steer a Beam#

A soft pneumatic actuator is an elastic body with a sealed chamber: pump fluid in, the chamber grows, and the material around it has to deform to make room. We model the chamber with tutorial 13’s signed-area outline energy, couple it to full-order neo-Hookean FEM with a clamped left wall (tutorial 4), and ramp the commanded chamber area \(A^\star\) quasistatically. Placing the chamber off the beam’s center line makes the cantilever curl.

\[ x^\star = \arg\min_x \; \underbrace{E_{\text{neo}}(x)}_{\text{elasticity}} + \underbrace{\tfrac{1}{2}k\,\bigl(A(x)-A^\star\bigr)^2}_{\text{pneumatic chamber}} + \underbrace{\tfrac{1}{2}\|x_{\text{pin}}-X_{\text{pin}}\|^2_{K}}_{\text{clamp the left wall}} \]

Imports, and every tunable parameter of this notebook.

%matplotlib inline
import os
import warnings
import numpy as np
import scipy as sp
import matplotlib.pyplot as plt
from matplotlib.colors import TwoSlopeNorm
import igl
import igl.triangle                       # Triangle: meshes a polygon with holes
import simkit
import utils

# numpy on macOS Accelerate raises spurious floating-point flags in large dense matmuls
warnings.filterwarnings("ignore", message=".*encountered in matmul")

NOTEBOOK = "015_pneumatic_actuation"                               # this file's name
RESULTS_DIR = utils.notebook_results_path(NOTEBOOK) # results/015_pneumatic_actuation/
MEDIA_DIR = "media"                                                # tracked copies for the website
# beam and chamber geometry
BEAM_L, BEAM_H = 3.5, 0.8                 # beam length and height
CHAMBER_A, CHAMBER_B = 0.85, 0.22         # chamber ellipse semi-axes
N_CHAMBER = 128                           # vertices on the chamber wall
MAX_AREA = 0.0012                         # Triangle's maximum triangle area
# material and penalties
YM, PR = 1e4, 0.45                        # Young's modulus, Poisson ratio
MATERIAL = "macklin-mueller-neo-hookean"  # simkit elastic energy
K_INFLATE = 1e5                           # chamber-area penalty stiffness k
K_PIN = 1e9                               # clamp stiffness K
# quasistatic inflation
GROWTH = 3.5                              # final commanded area / rest area
N_STEPS = 35                              # load steps from A_rest to GROWTH * A_rest
NEWTON_ITERS = 40                         # max Newton iterations per load step
# experiments
CY_DEMO = 0.15                            # chamber height of the single-beam demo

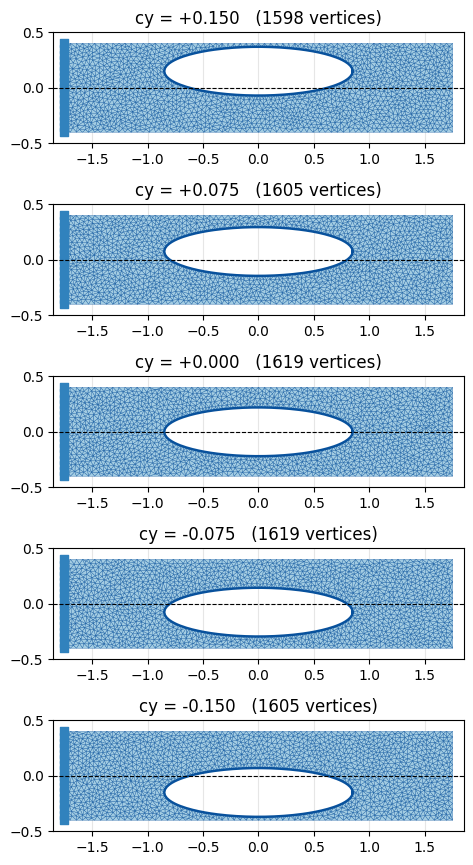

CY_SWEEP = [0.15, 0.075, 0.0, -0.075, -0.15]   # chamber heights of the design sweep

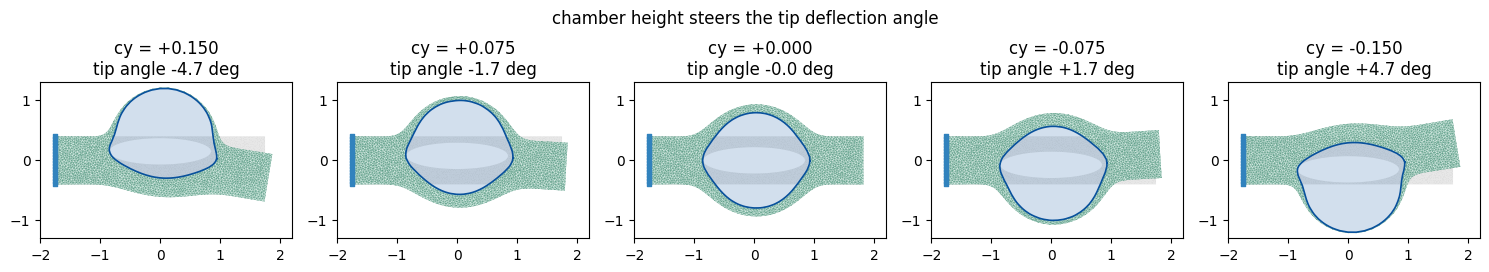

CY_STEERING = [0.15, 0.0, -0.15]          # subset of CY_SWEEP played side by side
FD_STEPS = np.logspace(-8, -1, 15)        # finite-difference step sizes of the gradient check
FD_NOISE = 1e-2                           # random perturbation of the gradient-check state
SEED = 0                                  # random seed of the gradient check
FPS = 18                                  # video frame rate

A beam with a chamber punched out#

chamber_beam builds the rectangle and the ellipse outlines with simkit, stacks them into one segment list, and lets Triangle mesh the region between them; the hole point at the ellipse center keeps the chamber empty. The chamber wall is the mesh’s smaller boundary loop, oriented counter-clockwise so that its signed area \(A\) (simkit.outline_areas, tutorial 13) is positive. The printout checks the rest area against the ellipse’s \(\pi a b\).

def chamber_beam(cy):
    """BEAM_L x BEAM_H beam with an elliptical chamber centered at (0, cy).
    Returns rest positions X, triangles T, the chamber-wall edge loop and the clamped left-wall vertices."""
    assert abs(cy) + CHAMBER_B < BEAM_H / 2, "the chamber must stay inside the beam"
    V_rect, E_rect = simkit.rectangle_outline(small=BEAM_H / 2, large=BEAM_L / 2)
    V_ell, E_ell = simkit.ellipse_outline(a=CHAMBER_A, b=CHAMBER_B, n=N_CHAMBER)
    V, E = simkit.combine_meshes([V_rect, V_ell + [0.0, cy]], [E_rect, E_ell])
    X, T, _, _, _ = igl.triangle.triangulate(V, E, H=np.array([[0.0, cy]]), flags=f"qa{MAX_AREA}Q")

    loops = igl.boundary_loop_all(T)                               # outer rectangle + chamber wall
    loop = min(loops, key=lambda l: np.ptp(X[l], axis=0).sum())    # the chamber is the smaller loop
    E_chamber = np.stack([loop, np.roll(loop, -1)], axis=1)
    if simkit.outline_areas(X, [E_chamber])[0] < 0:                # orient counter-clockwise: A > 0
        E_chamber = E_chamber[::-1, ::-1]
    pin_idx = np.where(X[:, 0] <= X[:, 0].min() + 1e-6)[0]         # clamp the left wall
    return X, T, E_chamber, pin_idx


X, T, E_chamber, pin_idx = chamber_beam(CY_DEMO)
A_rest = simkit.outline_areas(X, [E_chamber])[0]
print(f"mesh: {len(X)} vertices, {len(T)} triangles, {len(E_chamber)} chamber-wall edges, "
      f"{len(pin_idx)} pinned vertices")
print(f"chamber rest area A = {A_rest:.4f}   (ellipse pi*a*b = {np.pi * CHAMBER_A * CHAMBER_B:.4f})")

mesh: 1598 vertices, 2908 triangles, 128 chamber-wall edges, 17 pinned vertices
chamber rest area A = 0.5871   (ellipse pi*a*b = 0.5875)

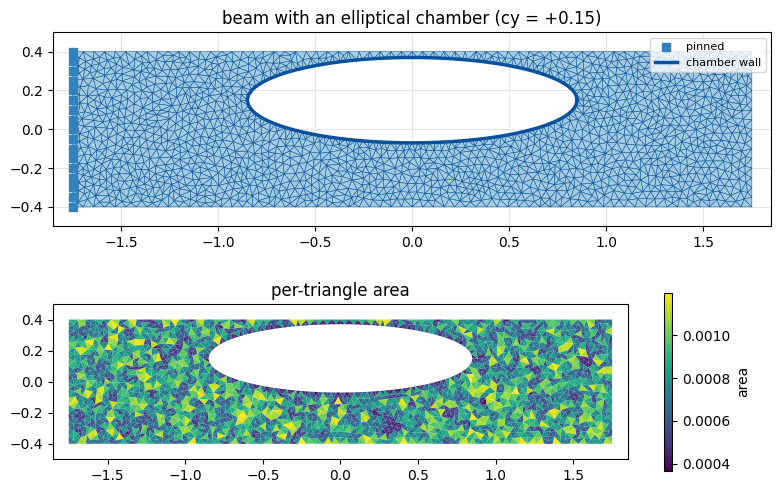

The demo mesh at rest (top), with the clamped wall and the chamber outline, and its per-triangle area from simkit.volume (bottom), the quadrature weight of every element. Triangle’s quality meshing keeps every area below MAX_AREA with no systematic grading, so the resolution is uniform along the beam and around the chamber.

vol = simkit.volume(X, T)
print(f"triangle areas from {vol.min():.1e} to {vol.max():.1e}   (MAX_AREA = {MAX_AREA})")
loop = np.append(E_chamber[:, 0], E_chamber[0, 0])                 # closed wall polyline
fig, (ax0, ax1) = plt.subplots(2, 1, figsize=(8, 5.2))
utils.plot_mesh(ax0, X, T, pins=pin_idx, lw=0.4, title=f"beam with an elliptical chamber (cy = {CY_DEMO:+.2f})")
ax0.plot(X[loop, 0], X[loop, 1], "-", color="#08519c", lw=2.5, zorder=4, label="chamber wall")
ax0.legend(loc="upper right", fontsize=8)
utils.plot_scalar_field(ax1, X, T, vol, title="per-triangle area", label="area", edges=False)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "mesh.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_mesh.png"))
plt.show()

triangle areas from 3.7e-04 to 1.2e-03   (MAX_AREA = 0.0012)
../_images/a3704e5ffab5908b324756ef77a9ea1a799f7af0106aa39dee9271cd1e80585d.png

The pneumatic energy#

pneumatic_system sums three terms, one per line: neo-Hookean elasticity, the clamp penalty, and the chamber term \(\tfrac12 k\,(A(x)-A^\star)^2\) with gradient \(k\,(A-A^\star)\,\nabla A\). outline_areas_gradient returns \(\nabla A\) on the wall vertices only, so the selection matrix \(S\) from outline_selection_matrices (expanded to x/y DOFs) scatters it onto the whole mesh. The chamber Hessian keeps only the Gauss–Newton part \(k\,\nabla A\,\nabla A^\top\), which is rank-1 and PSD. It drops the indefinite \(k\,(A-A^\star)\nabla^2 A\), so every Newton system stays positive-definite.

def pneumatic_system(X, T, E_chamber, pin_idx, A_target):
    """Neo-Hookean beam + clamped wall + one chamber driven toward the commanded area A_target."""
    n, dim = X.shape
    J = simkit.deformation_jacobian(X, T)
    vol = simkit.volume(X, T)
    mu, lam = simkit.ympr_to_lame(YM, PR)
    mu = np.full((len(T), 1), mu)
    lam = np.full((len(T), 1), lam)
    Q_pin, b_pin = simkit.dirichlet_penalty(pin_idx, X[pin_idx], n, K_PIN)
    S = simkit.outline_selection_matrices([E_chamber], n)[0]      # global vertices -> wall vertices
    S = sp.sparse.kron(S, sp.sparse.eye(dim)).tocsr()              # ... on interleaved x/y DOFs

    def area(x):
        return simkit.outline_areas(x.reshape(n, dim), [E_chamber])[0]

    def area_gradient(x):                                          # (1, 2 * wall vertices)
        return simkit.outline_areas_gradient(x.reshape(n, dim), [E_chamber])[0]

    def energy_func(x):
        E_elastic = simkit.energies.elastic_energy_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
        E_pin = simkit.energies.quadratic_energy(x, Q_pin, b_pin)
        E_pneumatic = 0.5 * K_INFLATE * (area(x) - A_target) ** 2
        E_total = E_elastic + E_pin + E_pneumatic
        return E_total

    def gradient_func(x):
        g_elastic = simkit.energies.elastic_gradient_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL)
        g_pin = simkit.energies.quadratic_gradient(x, Q_pin, b_pin)
        g_pneumatic = K_INFLATE * (area(x) - A_target) * (S.T @ area_gradient(x).T)
        g_total = g_elastic + g_pin + g_pneumatic
        return g_total

    def hessian_func(x):
        H_elastic = simkit.energies.elastic_hessian_x(x.reshape(n, dim), J, mu, lam, vol, MATERIAL, psd=True)
        H_pin = simkit.energies.quadratic_hessian(Q_pin)
        grad_A = area_gradient(x)
        H_pneumatic = K_INFLATE * (S.T @ sp.sparse.csr_matrix(grad_A.T @ grad_A) @ S)   # Gauss-Newton
        H_total = H_elastic + H_pin + H_pneumatic
        return H_total

    return energy_func, gradient_func, hessian_func

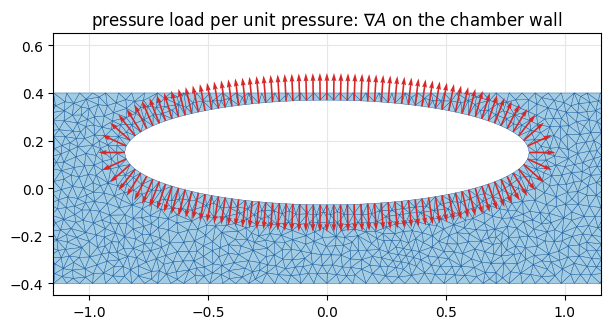

The chamber’s force is \(-k\,(A-A^\star)\,\nabla A = p\,\nabla A\) with \(p = k\,(A^\star - A)\). The shoelace gradient \(\nabla A\) at a wall vertex is half the sum of its two edges’ outward normals, so the term is exactly a pressure load with internal pressure \(p\). The arrows show \(\nabla A\) at rest: every one points out of the chamber, into the material, with nearly equal length because ellipse_outline spaces the wall vertices evenly by arc length.

wall = X[np.unique(E_chamber)]                                     # local order of outline_areas_gradient
grad_A = simkit.outline_areas_gradient(X, [E_chamber])[0].reshape(-1, 2)
fig, ax = plt.subplots(figsize=(8, 3.4))
utils.plot_mesh(ax, X, T, lw=0.3, lims=((-1.15, 1.15), (-0.45, 0.65)),
                title=r"pressure load per unit pressure: $\nabla A$ on the chamber wall")
ax.quiver(wall[:, 0], wall[:, 1], grad_A[:, 0], grad_A[:, 1], color="#d62728", zorder=6,
          angles="xy", scale_units="xy", scale=0.25, width=0.003)
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "pressure_load.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_pressure_load.png"))
plt.show()
../_images/eb0f4543121d978317fd64a4e366bc209268debe8bc7632b4e703a00a4c7ebe0.png

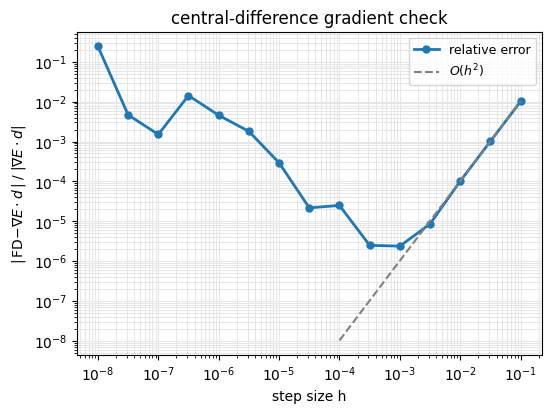

A central-difference check of the assembled gradient before simulating. At a randomly perturbed state (clamp kept exact) with the final commanded area, simkit.gradient_cfd differentiates \(t \mapsto E(x + t\,d)\) along a random unit direction \(d\), and we compare with \(\nabla E \cdot d\). The error falls like \(h^2\) (dashed guide) to a few \(10^{-6}\) near \(h = 10^{-3}\). Below that, round-off takes over, amplified by the large constant in the clamp penalty’s energy.

rng = np.random.default_rng(SEED)
energy_func, gradient_func, hessian_func = pneumatic_system(X, T, E_chamber, pin_idx, GROWTH * A_rest)
U_test = X + FD_NOISE * rng.standard_normal(X.shape)
U_test[pin_idx] = X[pin_idx]
x_test = U_test.reshape(-1, 1)
d = rng.standard_normal(x_test.shape)
d /= np.linalg.norm(d)
directional = (gradient_func(x_test).T @ d).item()
fd = np.array([simkit.gradient_cfd(lambda t: np.array([energy_func(x_test + t[0] * d)]), np.zeros(1), h)[0, 0]
               for h in FD_STEPS])
rel_err = np.abs(fd - directional) / abs(directional)
print(f"grad E . d = {directional:.6e}; best relative FD error {rel_err.min():.1e} at h = {FD_STEPS[rel_err.argmin()]:.0e}")

fig, ax = utils.loglog_plot(FD_STEPS, {"relative error": rel_err},
                            xlabel="step size h", ylabel=r"$|\,$FD$ - \nabla E\cdot d\,| \;/\; |\nabla E\cdot d|$",
                            title="central-difference gradient check", figsize=(6, 4.2))
h_guide = FD_STEPS[FD_STEPS >= 1e-4]
ax.loglog(h_guide, rel_err[-1] * (h_guide / FD_STEPS[-1]) ** 2, "--", color="0.5", label=r"$O(h^2)$")
ax.legend(fontsize=9)
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "gradient_check.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_gradient_check.png"))
plt.show()

grad E . d = 1.260745e+03; best relative FD error 2.4e-06 at h = 1e-03
../_images/f7ababe6c2a16a05f1126ff2139871e130499ffac18e29d3d5a7021baa3509d7.png

Quasistatically inflating the chamber#

There is no time, mass or velocity here. inflate ramps the commanded area \(A^\star\) from \(A_\text{rest}\) to GROWTH\(\,\cdot A_\text{rest}\) in N_STEPS load steps. At each step it rebuilds the system with the new \(A^\star\) and Newton-solves for static equilibrium, warm-started from the previous pose, and records the achieved area, the pressure \(p = k\,(A^\star - A)\) and Newton’s gradient-norm history. tip_deflection measures the free end’s mean vertical displacement and the angle it subtends over the beam length. We run the demo beam, whose chamber sits above the center line.

def inflate(X, T, E_chamber, pin_idx):
    """Ramp the commanded chamber area to GROWTH x rest, Newton-solving each load step."""
    A_rest = simkit.outline_areas(X, [E_chamber])[0]
    x = X.reshape(-1, 1).copy()
    run = {"states": [X.copy()], "targets": [A_rest], "areas": [A_rest], "pressures": [0.0],
           "iters": [], "grad_norms": []}
    for A_target in np.linspace(A_rest, GROWTH * A_rest, N_STEPS + 1)[1:]:
        energy_func, gradient_func, hessian_func = pneumatic_system(X, T, E_chamber, pin_idx, A_target)
        x, info = simkit.solvers.newton_solver(x, energy_func, gradient_func, hessian_func,
                                               max_iter=NEWTON_ITERS, do_line_search=True, return_info=True)
        A = simkit.outline_areas(x.reshape(-1, 2), [E_chamber])[0]
        run["states"].append(x.reshape(-1, 2).copy())
        run["targets"].append(A_target)
        run["areas"].append(A)
        run["pressures"].append(K_INFLATE * (A_target - A))
        run["iters"].append(info["iters"] + 1)
        run["grad_norms"].append([np.linalg.norm(g) for g in info["g"]] + [np.linalg.norm(gradient_func(x))])
    return run


def tip_deflection(X, U):
    """Mean vertical displacement of the free right end, and its angle (degrees) over the beam length."""
    tip = np.where(X[:, 0] >= X[:, 0].max() - 1e-6)[0]
    dy = U[tip, 1].mean() - X[tip, 1].mean()
    angle = np.degrees(np.arctan2(dy, BEAM_L))
    return dy, angle


demo = inflate(X, T, E_chamber, pin_idx)
dy, angle = tip_deflection(X, demo["states"][-1])
tip_path = [tip_deflection(X, U)[0] for U in demo["states"]]
k_up = int(np.argmax(tip_path))
print(f"chamber area {demo['areas'][0]:.3f} -> {demo['areas'][-1]:.3f}  (x{demo['areas'][-1] / demo['areas'][0]:.2f})")
print(f"final tip deflection {dy:+.3f}  (tip angle {angle:+.1f} deg); "
      f"on the way the tip first rises to {tip_path[k_up]:+.3f} at A = {demo['areas'][k_up]:.2f}")
print(f"peak chamber pressure p = {max(demo['pressures']):.1f}")
print(f"Newton iterations per load step: {min(demo['iters'])} to {max(demo['iters'])}")

chamber area 0.587 -> 2.052  (x3.49)
final tip deflection -0.291  (tip angle -4.7 deg); on the way the tip first rises to +0.262 at A = 1.01
peak chamber pressure p = 294.9
Newton iterations per load step: 4 to 30

The inflation, one frame per load step. Left: the beam holding still at each inflation level. While the flat ellipse rounds up, its width shrinks and pulls the top edge in, so the tip first rises; once the thin top wall has to stretch, it lengthens the top edge and the beam ends up curled down. Right: the chamber’s pressure–area curve, which rises slowly, steepens, and then flattens as the stretched, thinned wall gets easier to inflate.

fig, anim = utils.animate_chamber_trace(demo["states"], T, E_chamber[:, 0], demo["areas"],
                                        {"pressure": demo["pressures"]}, pins=pin_idx, fps=FPS,
                                        title="chamber near the top wall -> beam curls down",
                                        xlabel="chamber area A", ylabel=r"pressure $p = k(A^\star - A)$",
                                        trace_title="pressure vs. chamber area", colors={"pressure": "#08519c"})
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "pneumatic_inflate.mp4"), fps=FPS,
                                         copy_to=os.path.join(MEDIA_DIR, "015_pneumatic_inflate.mp4"))
plt.close(fig)
utils.embed_video(video)

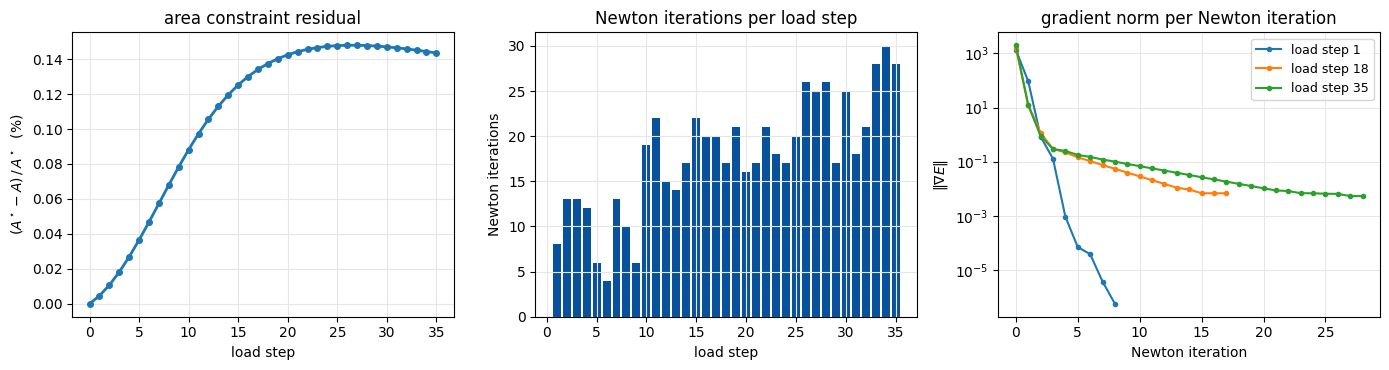

Three cheap checks on the demo run. Left: the soft constraint’s miss \(A^\star - A = p/k\) stays below 0.15% of the target, so K_INFLATE is stiff enough. Middle: Newton needs 4 to 30 iterations per load step. Right: the gradient norm per Newton iteration at the first, middle and last load step. The unpressurized first step converges quadratically; under pressure the dropped \(-p\,\nabla^2 A\) term makes Gauss–Newton converge only linearly, until the line search stalls at round-off.

targets = np.array(demo["targets"])
residual = (targets - np.array(demo["areas"])) / targets
steps = np.arange(N_STEPS + 1)
fig, axes = plt.subplots(1, 3, figsize=(14, 3.8))
utils.line_plot(steps, {"residual": 100 * residual}, ax=axes[0], markers=True, xlabel="load step",
                ylabel=r"$(A^\star - A)\,/\,A^\star$  (%)", title="area constraint residual")
axes[1].bar(steps[1:], demo["iters"], color="#08519c")
axes[1].set(xlabel="load step", ylabel="Newton iterations", title="Newton iterations per load step")
axes[1].grid(True, color="0.9", linewidth=0.8)
for k in [0, N_STEPS // 2, N_STEPS - 1]:
    axes[2].semilogy(demo["grad_norms"][k], "-o", ms=3, label=f"load step {k + 1}")
axes[2].set(xlabel="Newton iteration", ylabel=r"$\|\nabla E\|$", title="gradient norm per Newton iteration")
axes[2].grid(True, which="both", color="0.9", linewidth=0.7)
axes[2].legend(fontsize=9)
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "inflation_diagnostics.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_inflation_diagnostics.png"))
plt.show()
../_images/6335dc6d5a6f32bac7d3635c1ee07739ec41bc70abba99c16740c100585e3e32.png

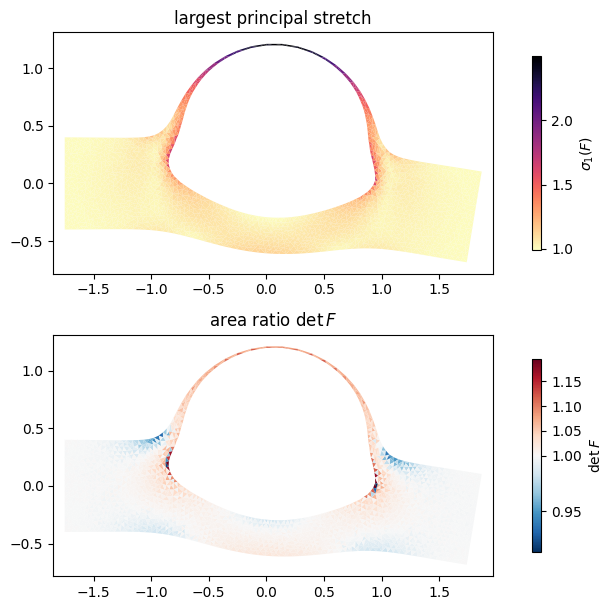

Where the material deforms at full inflation, per triangle from simkit.deformation_gradient. Top: the largest principal stretch (largest singular value of \(F\)); the thin top wall is stretched to about 2.5× around the dome while the thick bottom wall barely stretches, and this asymmetry bends the beam. Bottom: \(\det F\) stays within about 20% of 1 (Poisson ratio 0.45), so the stretched wall must thin.

U_final = demo["states"][-1]
F = simkit.deformation_gradient(X, T, U_final).reshape(-1, 2, 2)
stretch = np.linalg.svd(F, compute_uv=False)[:, 0]
print(f"largest principal stretch {stretch.max():.2f}; det F from {np.linalg.det(F).min():.2f} to {np.linalg.det(F).max():.2f}")
fig, (ax0, ax1) = plt.subplots(2, 1, figsize=(8, 6.2))
utils.plot_scalar_field(ax0, U_final, T, stretch, cmap="magma_r", edges=False,
                        title="largest principal stretch", label=r"$\sigma_1(F)$")
utils.plot_scalar_field(ax1, U_final, T, np.linalg.det(F), cmap="RdBu_r", edges=False,
                        norm=TwoSlopeNorm(vcenter=1.0), title=r"area ratio $\det F$", label=r"$\det F$")
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "stretch.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_stretch.png"))
plt.show()

largest principal stretch 2.50; det F from 0.91 to 1.20
../_images/9214eb7b31ba8abe8aa368e33be7a5385a871dab5a203a4f7f2f7eef3138744b.png

Steering: where you put the chamber sets the bend#

The chamber height cy is the actuator’s design knob. Above the center line it leaves a thin, compliant top wall that stretches far more than the thick bottom wall, so the beam curls down; below, it curls up; centered, it only swells. We build one mesh per height in CY_SWEEP, shown here at rest with the center line dashed.

designs = {cy: chamber_beam(cy) for cy in CY_SWEEP}
fig, axes = plt.subplots(len(CY_SWEEP), 1, figsize=(7, 1.75 * len(CY_SWEEP)))
for ax, cy in zip(axes, CY_SWEEP):
    Xd, Td, Ed, pins_d = designs[cy]
    loop_d = np.append(Ed[:, 0], Ed[0, 0])
    utils.plot_mesh(ax, Xd, Td, pins=pins_d, lw=0.25, title=f"cy = {cy:+.3f}   ({len(Xd)} vertices)")
    ax.plot(Xd[loop_d, 0], Xd[loop_d, 1], "-", color="#08519c", lw=1.8, zorder=4)
    ax.axhline(0.0, color="k", ls="--", lw=0.8, zorder=5)
    ax.get_legend().remove()
fig.tight_layout()
simkit.filesystem.save_figure(fig, os.path.join(RESULTS_DIR, "designs.png"),
                              copy_to=os.path.join(MEDIA_DIR, "015_designs.png"))
plt.show()
../_images/94906d5032d0ea0c44ef9e5d5b3290d68a0d3b9ddcefc1a7328b2dedab83d2a2.png

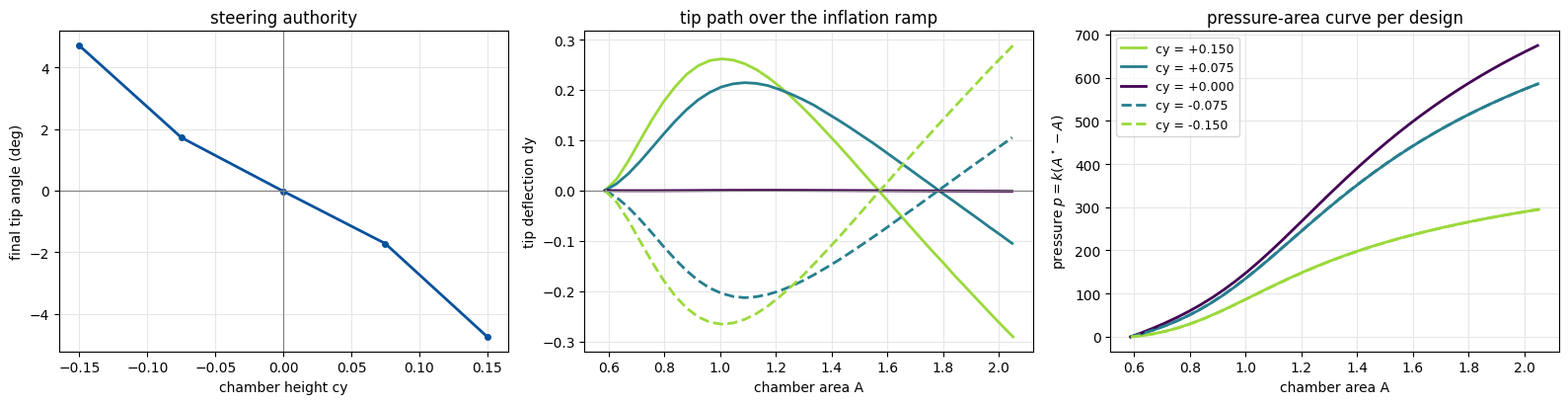

Inflate every design with the same ramp (about a minute; the demo run is reused) and report its tip deflection and peak pressure. The response is antisymmetric in cy, and the centered chamber needs more than twice the peak pressure of the cy = ±0.15 ones, because both of its walls are thick.

assert set(CY_STEERING) <= set(CY_SWEEP)
runs = {CY_DEMO: demo}
for cy in CY_SWEEP:
    if cy not in runs:
        runs[cy] = inflate(*designs[cy])
tips = {cy: tip_deflection(designs[cy][0], runs[cy]["states"][-1]) for cy in CY_SWEEP}
for cy in CY_SWEEP:
    print(f"cy = {cy:+.3f}   tip dy = {tips[cy][0]:+.3f}   tip angle = {tips[cy][1]:+.1f} deg   "
          f"peak pressure = {max(runs[cy]['pressures']):5.0f}")

cy = +0.150   tip dy = -0.291   tip angle = -4.7 deg   peak pressure =   295
cy = +0.075   tip dy = -0.105   tip angle = -1.7 deg   peak pressure =   586
cy = +0.000   tip dy = -0.001   tip angle = -0.0 deg   peak pressure =   674
cy = -0.075   tip dy = +0.105   tip angle = +1.7 deg   peak pressure =   585
cy = -0.150   tip dy = +0.288   tip angle = +4.7 deg   peak pressure =   295

Three of those runs side by side: the same inflation with the chamber high, centered and low ends with the beam bent down, straight, and up (titles give the final tip angle).

panels = [{"states": runs[cy]["states"], "T": designs[cy][1], "loop": designs[cy][2][:, 0],
           "pins": designs[cy][3], "title": f"cy = {cy:+.2f}:  final tip angle {tips[cy][1]:+.1f} deg"}
          for cy in CY_STEERING]
fig, anim = utils.animate_chamber_panels(panels, fps=FPS, suptitle="same inflation, three chamber placements")
video = simkit.filesystem.save_animation(anim, os.path.join(RESULTS_DIR, "pneumatic_steering.mp4"), fps=FPS,
                                         copy_to=os.path.join(MEDIA_DIR, "015_pneumatic_steering.mp4"))
plt.close(fig)
utils.embed_video(video)
