11 · Mass Springs: from Hooke’s Law to a Sagging Cable#
The spring is the simplest elastic element there is: two point masses joined by one edge. We start from its energy, watch Hooke’s law fall out of a derivative, add inertia and compare time integrators in phase space, then glue many springs into a cable and let it sag under gravity.
step |
what we do |
|---|---|
1 |
build the spring energy and collapse the spring — Hooke’s law appears |
2 |
add mass; march Forward / Backward Euler & BDF2; read the phase portrait |
3 |
chain springs into a cable; sag it with and without inertia |
%matplotlib inline
import numpy as np
import scipy as sp
import matplotlib.pyplot as plt
import simkit
import simkit.energies as energies
from simkit.solvers import newton_solver
import utils
1 · The elastic energy of a single spring (Hooke’s law)#
A spring has endpoints \(x_i\) and \(x_j\). We build its energy in four small steps, each throwing away information we do not want the energy to care about:
edge vector \(d = x_j - x_i\) — kills translation (sliding both nodes together leaves \(d\) unchanged);
current length \(l = \lVert d\rVert\) — kills rotation (only the distance matters);
strain \(l - l_0\) — how far we are from the rest length \(l_0\);
energy \(\psi = \tfrac{1}{2}\,k\,(l-l_0)^2\).
The stiffness is \(k = ym/l_0^2\); dividing by \(l_0^2\) makes the energy
mesh-independent. This \(\psi\) is exactly mass_springs_energy_element_d.

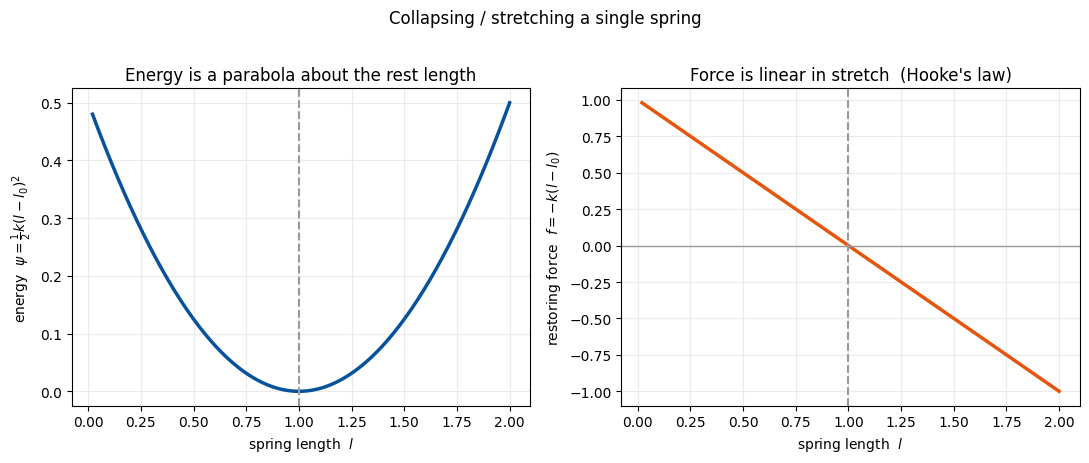

Differentiate once and the force drops out,
linear in the stretch and pointing back toward rest — that is Hooke’s law, derived from a quadratic energy rather than assumed.
l0_val = 1.0
X = np.array([[0.0, 0.0], [l0_val, 0.0]]) # node 0 pinned at origin, node 1 at rest
E = np.array([[0, 1]])
ym = np.array([[1.0]]) # per-edge stiffness
vol = np.ones((1, 1)) # one element, unit quadrature weight
l0 = simkit.edge_lengths(X, E).reshape(-1, 1)
k = float((ym / l0 ** 2).flatten()[0]) # effective Hooke stiffness
print(f"rest length l0 = {l0[0,0]:.3f}, stiffness k = ym/l0^2 = {k:.3f}")
# energy + force as the spring is collapsed (l -> 0) and stretched (l -> 2 l0)
lengths = np.linspace(0.02, 2.0 * l0_val, 200)
d = np.column_stack([lengths, np.zeros_like(lengths)])
psi = energies.mass_springs_energy_element_d(d, ym, l0).flatten()
dpsi_dl = energies.mass_springs_gradient_element_d(d, ym, l0)[:, 0] # = k (l - l0)
force = -dpsi_dl # Hooke restoring force
fig, (ax_e, ax_f) = plt.subplots(1, 2, figsize=(11, 4.5))
ax_e.plot(lengths, psi, color=utils.SPRING_EDGE, lw=2.5)
ax_e.axvline(l0_val, color="0.6", ls="--", lw=1.5)
ax_e.set_xlabel("spring length $l$"); ax_e.set_ylabel(r"energy $\psi=\frac{1}{2}k(l-l_0)^2$")
ax_e.set_title("Energy is a parabola about the rest length"); ax_e.grid(True, color="0.92")
ax_f.plot(lengths, force, color=utils.SPRING_NODE, lw=2.5)
ax_f.axhline(0, color="0.6", lw=1.0); ax_f.axvline(l0_val, color="0.6", ls="--", lw=1.5)
ax_f.set_xlabel("spring length $l$"); ax_f.set_ylabel(r"restoring force $f=-k(l-l_0)$")
ax_f.set_title("Force is linear in stretch (Hooke's law)"); ax_f.grid(True, color="0.92")
fig.suptitle("Collapsing / stretching a single spring", y=1.02); fig.tight_layout(); plt.show()
rest length l0 = 1.000, stiffness k = ym/l0^2 = 1.000
Now collapse and re-stretch the spring, revealing the energy curve in lock-step so the quadratic well around \(l_0\) is unmistakable.
sweep = np.concatenate([np.linspace(0.1, 1.9, 45), np.linspace(1.9, 0.1, 45)])
# build each frame's spring state with an explicit loop
states = []
for s in sweep:
states.append(np.array([[0.0, 0.0], [s, 0.0]]))
psi_sweep = energies.mass_springs_energy_element_d(
np.column_stack([sweep, np.zeros_like(sweep)]), ym, l0).flatten()
fig, anim = utils.animate_springs_energy(
states, E, sweep, {"elastic": psi_sweep}, rest=X, lims=((-0.4, 2.2), (-1.0, 1.0)),
xlabel="spring length $l$", ylabel="elastic energy", scene_title="spring (gray = rest)",
title="energy vs length", colors={"elastic": utils.SPRING_EDGE}, pin_pts=X[:1])
utils.show_video(fig, anim, "media/11_spring_collapse.mp4", fps=20)
2 · Adding inertia: integrators and the phase portrait#
Now give the free node mass \(m\) and let it move. With displacement-from-rest \(u = q - l_0\), Newton’s second law is a harmonic oscillator,
Writing the state \(y = [u, v]\) (velocity \(v=\dot u\)) gives \(y' = A y\) with \(A = \begin{pmatrix}0 & 1\\ -k/m & 0\end{pmatrix}\). The exact motion conserves \(H = \tfrac12 k u^2 + \tfrac12 m v^2\), so in the position–momentum plane \((q,\,p=mv)\) it traces a closed ellipse forever. A good integrator keeps that loop closed:
scheme |
one step |
phase-space behaviour |
|---|---|---|
Forward Euler |
\(y_{n+1} = (I + hA)\,y_n\) |
spirals outward (gains energy) |
Backward Euler |
\((I - hA)\,y_{n+1} = y_n\) |
spirals inward (numerical damping) |
BDF2 |
\((3I - 2hA)\,y_{n+1} = 4y_n - y_{n-1}\) |
nearly closed (2nd order) |
k, m = 1.0, 1.0 # stiffness (= ym/l0^2 from section 1) and mass
A = np.array([[0.0, 1.0], [-k / m, 0.0]])
omega = np.sqrt(k / m); period = 2 * np.pi / omega; I2 = np.eye(2)
print(f"omega = {omega:.3f}, period = {period:.3f}")
# the three integrators as analytic 2x2 maps on the state y = [u, v]
fe_step = lambda y, h: (I2 + h * A) @ y # Forward Euler
be_step = lambda y, h: np.linalg.solve(I2 - h * A, y) # Backward Euler
bdf2_step = lambda y, yp, h: np.linalg.solve(3 * I2 - 2 * h * A, 4 * y - yp) # BDF2
def integrate(kind, h, n_steps, y0):
"""Roll the chosen scheme forward and return (position, momentum) and energy."""
ys = [y0.copy()]
if kind == "Forward Euler":
for _ in range(n_steps):
ys.append(fe_step(ys[-1], h))
elif kind == "Backward Euler":
for _ in range(n_steps):
ys.append(be_step(ys[-1], h))
else: # BDF2, bootstrapped with one BE step
ys.append(be_step(ys[0], h))
for _ in range(2, n_steps + 1):
ys.append(bdf2_step(ys[-1], ys[-2], h))
Y = np.array(ys); u, v = Y[:, 0], Y[:, 1]
qp = np.column_stack([u, m * v]) # (position, momentum)
H = 0.5 * k * u ** 2 + 0.5 * m * v ** 2 # total energy
return qp, H
y0 = np.array([1.0, 0.0]) # displaced and at rest
h = 0.1 # coarse step so the schemes visibly differ
n_steps = int(round(3 * period / h)) # ~3 oscillations
schemes = ["Forward Euler", "Backward Euler", "BDF2"]
# run each scheme explicitly
traj = {}
for s in schemes:
traj[s] = integrate(s, h, n_steps, y0)
omega = 1.000, period = 6.283
The phase portrait#

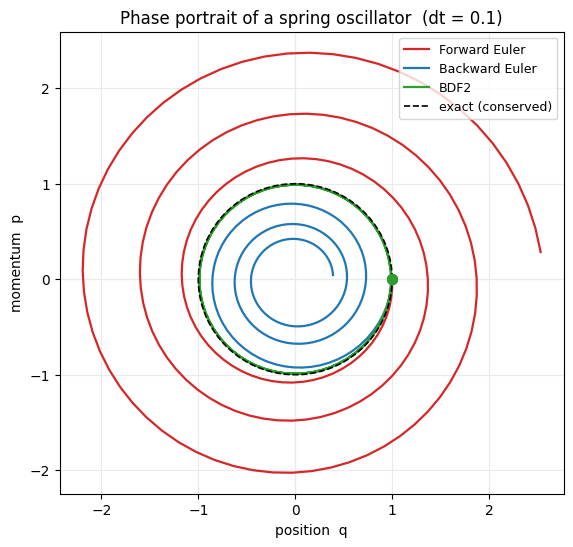

Position vs momentum. Forward Euler spirals out, Backward Euler spirals in, and BDF2 sits right on the exact energy-conserving ellipse.
fig, ax = utils.phase_plot({s: traj[s][0] for s in schemes},
title=f"Phase portrait of a spring oscillator (dt = {h})")
theta = np.linspace(0, 2 * np.pi, 200)
ax.plot(np.cos(theta), m * omega * np.sin(theta), "k--", lw=1.2, label="exact (conserved)")
ax.legend(loc="upper right", fontsize=9); plt.show()

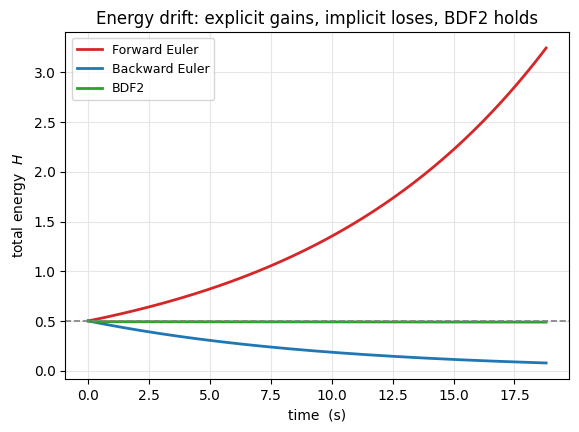

Same story as a time series: the total energy each scheme should hold flat.
t = np.arange(n_steps + 1) * h
fig, ax = utils.line_plot(t, {s: traj[s][1] for s in schemes},
xlabel="time (s)", ylabel="total energy $H$", colors=utils.INTEGRATOR_COLORS,
title="Energy drift: explicit gains, implicit loses, BDF2 holds")
ax.axhline(0.5 * k * y0[0] ** 2, color="0.5", ls="--", lw=1.2); plt.show()
And the same three integrators as actual oscillating springs, side by side.
E = np.array([[0, 1]])
stride = max(1, (n_steps + 1) // 90)
# build one panel of spring states per scheme with an explicit loop
panels = []
for s in schemes:
u = traj[s][0][::stride, 0]
states = []
for ui in u:
states.append(np.array([[0.0, 0.0], [1.0 + ui, 0.0]]))
panels.append({"states": states, "E": E, "title": s})
fig, anim = utils.animate_springs_grid(panels, lims=((-0.6, 3.2), (-1.0, 1.0)), fps=20,
pin_pts=np.array([[0.0, 0.0]]),
suptitle="Same spring, same dt: explicit grows, implicit shrinks, BDF2 steady")
utils.show_video(fig, anim, "media/11_oscillators.mp4", fps=20)
3 · A cable: many spring elements glued together#
One spring resists only stretch. Chain many end to end and pin both ends, and the assembly behaves like an elastic cable: under gravity the interior nodes drop until tension balances weight (a catenary sag). Pure springs carry no bending stiffness, so this is a cable, not a stiff beam — bending would be the next ingredient.
With flattened vertex positions \(x\) the total potential is
simkit assembles the elastic term with the edge-displacement operator \(J\)
(so \(d = Jx\) stacks every edge vector) via mass_springs_*_z.
Without inertia (quasi-static): the cable sits where \(\Phi\) is minimised; hand \(\Phi, \nabla\Phi, \nabla^2\Phi\) to Newton.
With inertia (dynamic): each Backward-Euler step minimises \(\Phi(x) + \tfrac{1}{2h^2}\lVert x - \tilde x\rVert_M^2\) with momentum target \(\tilde x = x_n + h v_n\); the cable overshoots and rings down to the same equilibrium.
The cable simulator#
CableSim composes the cable’s terms from utils — the spring elastic
energy, both endpoint pins, and gravity. Its energy / gradient / hessian are
the static potential \(\Phi\), summed one term per line exactly as Newton
wants. A separate step() adds the Backward-Euler inertia term (its own line)
and does one implicit solve, so the same potential drives both the quasi-static
and the dynamic runs.
class CableSim:
"""Horizontal chain of springs pinned at both ends, sagging under gravity."""
def __init__(self, n_nodes=21, length=4.0, ym_val=40.0, rho=1.0, h=0.04):
X = np.zeros((n_nodes, 2)); X[:, 0] = np.linspace(0.0, length, n_nodes)
E = np.array([[i, i + 1] for i in range(n_nodes - 1)])
n, dim = X.shape
Be = simkit.edge_displacement_jacobian(X, E)
J = sp.sparse.kron(Be, sp.sparse.eye(dim)).tocsc() # d = J x stacks edge vectors
l0 = simkit.edge_lengths(X, E).reshape(-1, 1)
ym = np.full((E.shape[0], 1), ym_val); vol = np.ones((E.shape[0], 1))
self.spring = utils.SpringEnergy(J, ym, vol, l0)
self.M = sp.sparse.kron(simkit.massmatrix(X, E, rho=rho), sp.sparse.eye(dim)).tocsc()
self.gravity = utils.Gravity(simkit.gravity_force(X, E, a=-9.8, rho=rho).reshape(-1, 1))
self.pin = utils.PenaltySpring(X.shape[0], dim, 1e8).set([0, n_nodes - 1], X[[0, n_nodes - 1]])
self.inertia = utils.Inertia(self.M, h)
self.X, self.E, self.n, self.dim = X, E, n, dim
self.pin_idx = np.array([0, n_nodes - 1])
# ---- static potential Phi(x) = spring + pin + gravity (one term per line) ----
def energy(self, x):
E_spring = self.spring.energy(x)
E_pin = self.pin.energy(x)
E_gravity = self.gravity.energy(x)
return E_spring + E_pin + E_gravity
def gradient(self, x):
g_spring = self.spring.gradient(x)
g_pin = self.pin.gradient(x)
g_gravity = self.gravity.gradient(x)
return g_spring + g_pin + g_gravity
def hessian(self, x):
H_spring = self.spring.hessian(x)
H_pin = self.pin.hessian(x)
return H_spring + H_pin # gravity is linear: no Hessian term
# ---- one Backward-Euler step: static potential + inertia term ----
def step(self, x_n, v_n):
self.inertia.update(x_n, v_n)
def energy(x):
E_static = self.energy(x)
E_inertia = self.inertia.energy(x)
return E_static + E_inertia
def gradient(x):
g_static = self.gradient(x)
g_inertia = self.inertia.gradient(x)
return g_static + g_inertia
def hessian(x):
H_static = self.hessian(x)
H_inertia = self.inertia.hessian(x)
return H_static + H_inertia
x0 = x_n + self.inertia.h * v_n # inertial guess = momentum target
x_next = newton_solver(x0, energy, gradient, hessian, max_iter=20, do_line_search=True)
v_next = (x_next - x_n) / self.inertia.h
return x_next, v_next
cable = CableSim()
X, E = cable.X, cable.E
n, dim = cable.n, cable.dim
Without inertia: static equilibrium via Newton#
No time, no velocity — just minimise \(\Phi\). We record every Newton iterate and watch the flat chain relax into its catenary sag.
# explicit Newton loop, recording every iterate
static_states = [X.copy()]
x = X.flatten().astype(float).reshape(-1, 1)
for _ in range(40):
x = newton_solver(x, cable.energy, cable.gradient, cable.hessian, max_iter=1, do_line_search=True)
static_states.append(x.reshape(n, dim).copy())
x_static = x.reshape(n, dim)
print(f"static: |grad| = {np.linalg.norm(cable.gradient(x_static.flatten().reshape(-1, 1))):.2e}, "
f"max sag = {-(x_static[:,1].min()):.3f}")
fig, anim = utils.animate_springs_energy(
static_states, E, np.arange(len(static_states)),
{"potential": [cable.energy(s.flatten().reshape(-1, 1)) for s in static_states]}, rest=X,
lims=((-0.5, 4.5), (-2.6, 0.6)), xlabel="Newton iteration", ylabel="potential energy",
scene_title="static sag (gray = rest)", title="energy minimised",
colors={"potential": utils.ENERGY_COLORS["potential"]}, pin_pts=X[cable.pin_idx])
utils.show_video(fig, anim, "media/11_cable_static.mp4", fps=12)
static: |grad| = 3.60e-08, max sag = 0.883
With inertia: Backward-Euler dynamics from rest#
Release the flat chain and march it in time. It falls, overshoots, and oscillates — the kinetic energy rings down as it settles to the static shape above.
n_steps = 150
# explicit dynamic loop from rest, recording kinetic energy each step
U = X.flatten().astype(float).reshape(-1, 1)
V = np.zeros_like(U)
dyn_states, ke_hist, t_hist = [X.copy()], [0.0], [0.0]
for step in range(n_steps):
U, V = cable.step(U, V)
dyn_states.append(U.reshape(n, dim).copy())
ke_hist.append(0.5 * (V.T @ (cable.M @ V))[0, 0])
t_hist.append((step + 1) * cable.inertia.h)
print(f"dynamic: settled max sag = {-(U.reshape(n, dim)[:,1].min()):.3f} (matches static), "
f"final KE = {ke_hist[-1]:.2e}")
fig, anim = utils.animate_springs_energy(
dyn_states, E, t_hist, {"kinetic": ke_hist}, rest=X, lims=((-0.5, 4.5), (-2.6, 0.6)),
xlabel="time (s)", ylabel="kinetic energy", scene_title="dynamic sag (Backward Euler)",
title="kinetic energy rings down", colors={"kinetic": utils.ENERGY_COLORS["kinetic"]},
pin_pts=X[cable.pin_idx])
utils.show_video(fig, anim, "media/11_cable_dynamic.mp4", fps=25)
dynamic: settled max sag = 0.893 (matches static), final KE = 2.97e-04
Same equilibrium, two roads#
Quasi-static minimisation and full dynamics settle to the same sagged shape.
nf = 80
# resample both runs to nf frames with explicit loops
qs = []
for i in range(nf):
j = min(int(i / nf * (len(static_states) - 1)), len(static_states) - 1)
qs.append(static_states[j])
dyn = []
for i in np.linspace(0, len(dyn_states) - 1, nf).astype(int):
dyn.append(dyn_states[i])
fig, anim = utils.animate_springs_grid(
[{"states": qs, "E": E, "title": "without inertia (quasi-static)"},
{"states": dyn, "E": E, "title": "with inertia (dynamic)"}],
lims=((-0.5, 4.5), (-2.6, 0.6)), fps=25, pin_pts=X[cable.pin_idx],
suptitle="Cable sag: minimisation vs dynamics settle to the same shape")
utils.show_video(fig, anim, "media/11_cable_compare.mp4", fps=25)

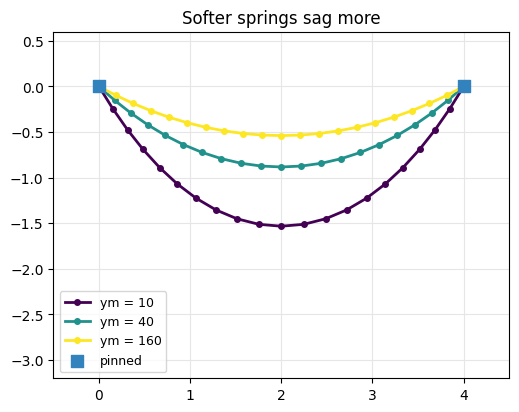

Finally, a quick parameter study: softer springs (smaller ym) sag more.
# explicit stiffness sweep: fresh CableSim + static solve per material
sags = {}
for ym_val in [10.0, 40.0, 160.0]:
cc = CableSim(ym_val=ym_val)
x0 = cc.X.flatten().astype(float).reshape(-1, 1)
xs = newton_solver(x0, cc.energy, cc.gradient, cc.hessian, max_iter=60, do_line_search=True)
sags[ym_val] = xs.reshape(cc.n, cc.dim)
fig, ax = plt.subplots(figsize=(7, 4.5))
utils.setup_axes(ax, (-0.5, 4.5), (-3.2, 0.6), title="Softer springs sag more")
cmap = plt.get_cmap("viridis")
for j, (ym_val, xs) in enumerate(sags.items()):
ax.plot(xs[:, 0], xs[:, 1], "-o", ms=4, lw=2,
color=cmap(j / max(1, len(sags) - 1)), label=f"ym = {ym_val:g}")
ax.scatter(X[cable.pin_idx, 0], X[cable.pin_idx, 1], s=70, marker="s",
color=utils.PIN_C, zorder=5, label="pinned")
ax.legend(fontsize=9); plt.show()
Takeaways#
A spring stores \(\tfrac12 k (l-l_0)^2\); differentiating gives the linear Hooke force \(-k(l-l_0)\).
With inertia the integrator decides the energy behaviour: Forward Euler gains it (unstable), Backward Euler bleeds it (damped), BDF2 nearly conserves it — vivid in the phase portrait.
Many springs make an elastic cable; gravity sags it into a catenary, and the quasi-static minimisation and the dynamic Backward-Euler run settle to the same equilibrium shape.
